Image shown is representative only. Exact specifications should be obtained from the product datasheet.

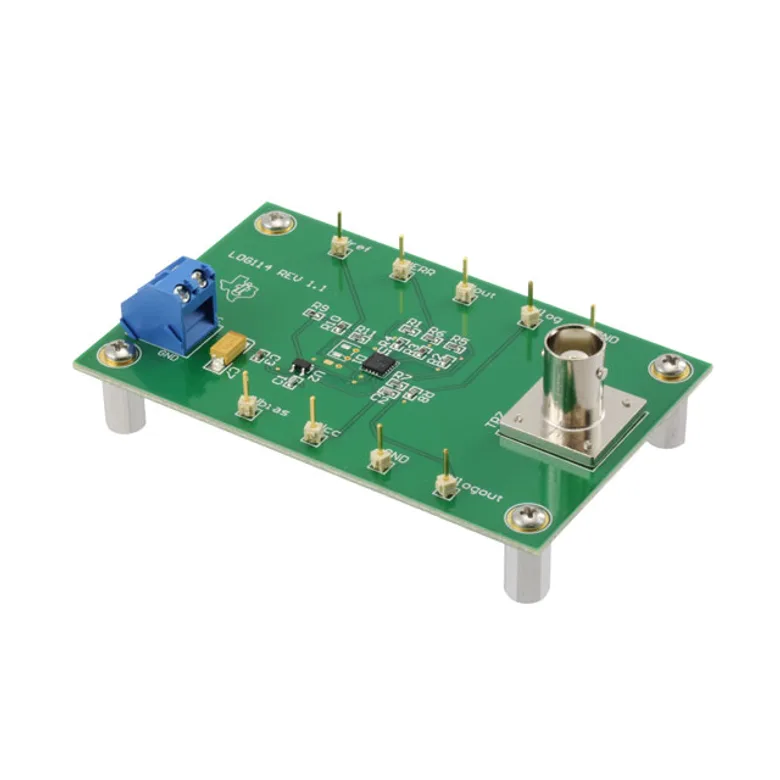

Texas Instruments LOG114EVM
Manufacturer
Manufacturer Product Number
LOG114EVM
Description
EVAL BOARD FOR LOG114
Manufacturer Standard Lead Time Contact us
Detailed Description
LOG114 - 1 - Single Channels per IC Logarithmic Amplifier Evaluation Board
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Contents
Board(s)
Output Type
-
Slew Rate
5V/µs
Gain Bandwidth Product
15MHz
Voltage - Supply, Single/Dual (±)
4.8V ~ 11V, ±2.4V ~ 5.5V
Utilized IC / Part
LOG114
Channels per IC
1 - Single
Note
-
Amplifier Type
Logarithmic
Current - Output / Channel
18mA
Current - Supply (Main IC)
10mA
-3db Bandwidth
-
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
LOG114EVM
2799263
296-30950-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 4
Packaging Quantity Unit Price Ext Price
1 1.591.000 ₫ 1.591.000 ₫
1.591.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
1.591.000 ₫
1.591.000 ₫
MOQ 1 · Order multiple 1
