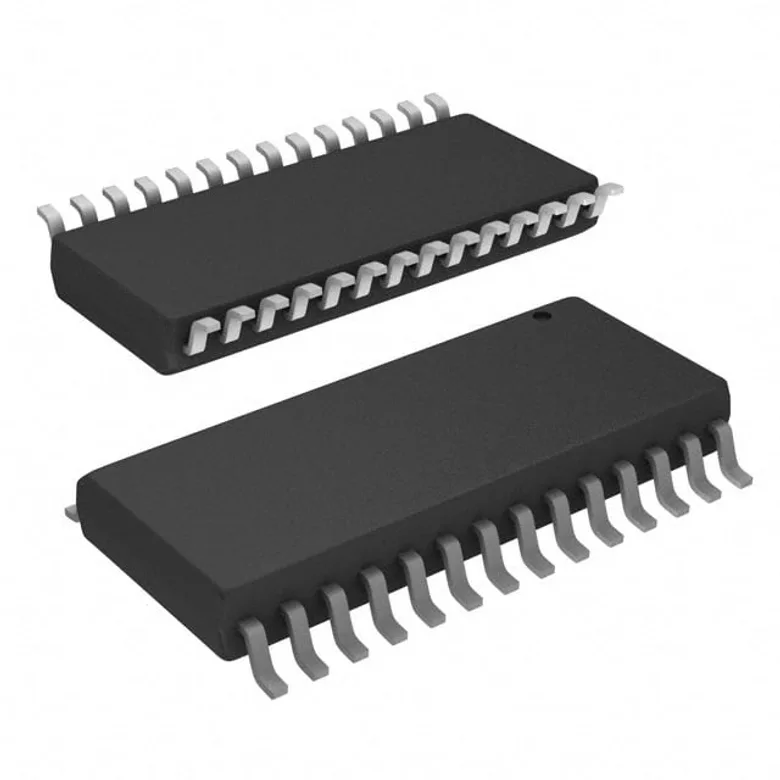

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments MAX211CDW
Manufacturer
Manufacturer Product Number
MAX211CDW
Description
IC TRANSCEIVER FULL 4/5 28SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
4/5 Transceiver Full RS232 28-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4.5V ~ 5.5V
Number of Drivers/Receivers
4/5
Data Rate
120Kbps
Protocol
RS232
Mounting Type
Surface Mount
Supplier Device Package
28-SOIC
Package / Case
28-SOIC (0.295", 7.50mm Width)
Receiver Hysteresis
500 mV
Duplex
Full
Type
Transceiver
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
MAX211CDW
13479123
2156-MAX211CDW-ND
296-33349-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 10,389
Packaging Quantity Unit Price Ext Price
1 64.000 ₫ 64.000 ₫
64.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
122
64.000 ₫
7.808.000 ₫
MOQ 122 · Order multiple 122
Tube · Digikey
Quantity Unit Price Ext Price
540
47.000 ₫
25.380.000 ₫
MOQ 540 · Order multiple 540
Substitutes
ADM211EARZ
IC TRANSCEIVER FULL 4/5 28SOIC
81.000 ₫ Analog Devices Inc.
MAX213CDW
IC TRANSCEIVER FULL 4/5 28SOIC
75.000 ₫ Texas Instruments
HIN211EIBZ
IC TRANSCEIVER FULL 4/5 28SOIC
74.000 ₫ Renesas Electronics Corporation
HIN211ECBZ
IC TRANSCEIVER FULL 4/5 28SOIC
83.000 ₫ Renesas Electronics Corporation
HIN211ECBZ-T
IC TRANSCEIVER FULL 4/5 28SOIC
41.000 ₫ Renesas Electronics Corporation
