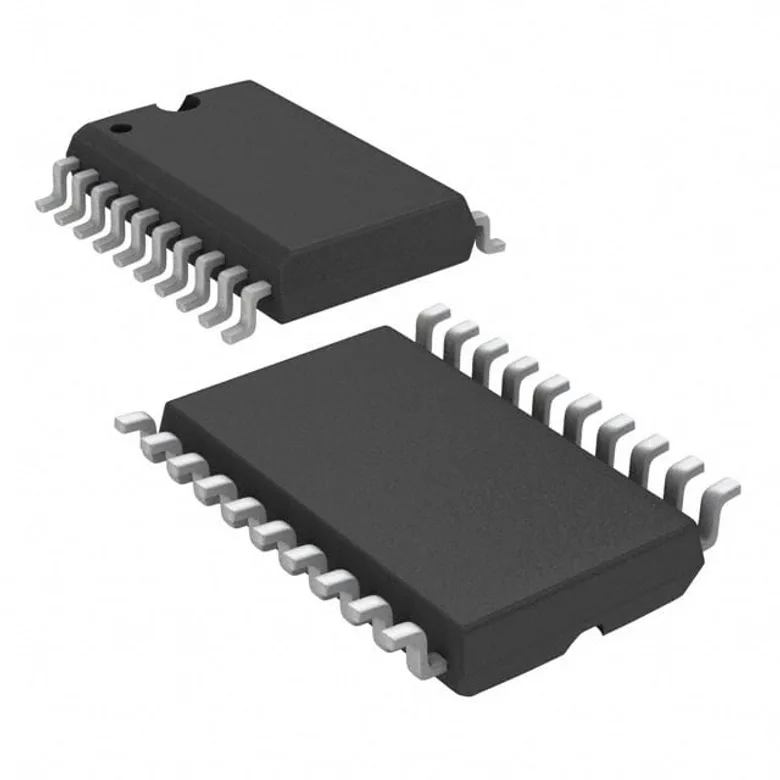

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments MAX3223CDWR
Manufacturer
Manufacturer Product Number
MAX3223CDWR
Description
IC TRANSCEIVER FULL 2/2 20SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC TRANSCEIVER FULL 2/2 20SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
0°C ~ 70°C
Voltage - Supply
3V ~ 5.5V
Number of Drivers/Receivers
2/2
Data Rate
250kbps
Protocol
RS232
Mounting Type
Surface Mount
Supplier Device Package
20-SOIC
Package / Case
20-SOIC (0.295", 7.50mm Width)
Receiver Hysteresis
500 mV
Duplex
Full
Type
Transceiver
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
MAX3223CDWR
1945323
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
MAX3223CDW
IC TRANSCEIVER FULL 2/2 20SOIC
56.000Â â‚« Texas Instruments
Substitutes
MAX3223EIDBR
IC TRANSCEIVER FULL 2/2 20SSOP
46.000Â â‚« Texas Instruments
