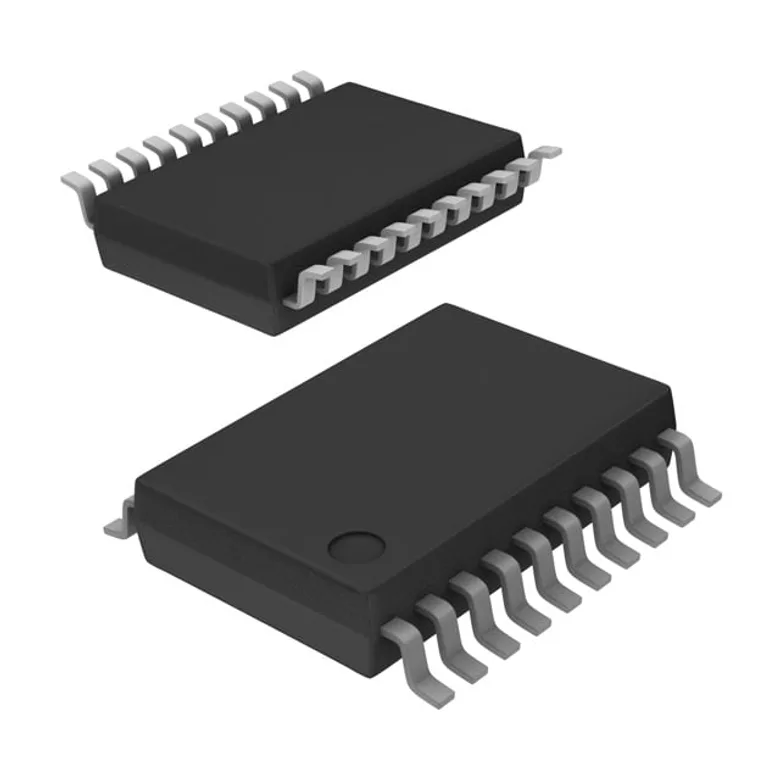

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments MAX3223EIDB
Manufacturer
Manufacturer Product Number
MAX3223EIDB
Description
IC TRANSCEIVER FULL 2/2 20SSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC TRANSCEIVER FULL 2/2 20SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
3V ~ 5.5V
Number of Drivers/Receivers
2/2
Data Rate
500kbps
Protocol
RS232
Mounting Type
Surface Mount
Supplier Device Package
20-SSOP
Package / Case
20-SSOP (0.209", 5.30mm Width)
Receiver Hysteresis
500 mV
Duplex
Full
Type
Transceiver
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Training Modules
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
MAX3223EIDB
1511107
296-33377-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 769
Packaging Quantity Unit Price Ext Price
1 89.000 ₫ 89.000 ₫
89.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
89.000 ₫
89.000 ₫
10
67.000 ₫
670.000 ₫
70
57.000 ₫
3.990.000 ₫
140
54.000 ₫
7.560.000 ₫
280
52.000 ₫
14.560.000 ₫
560
51.000 ₫
28.560.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
MAX3223EIDBR
IC TRANSCEIVER FULL 2/2 20SSOP
46.000 ₫ Texas Instruments
MAX3223EIDBR
IC TRANSCEIVER FULL 2/2 20SSOP
85.000 ₫ Texas Instruments
Substitutes
MAX3223EIDBR
IC TRANSCEIVER FULL 2/2 20SSOP
46.000 ₫ Texas Instruments
ICL3223EIVZ-T
IC TRANSCEIVER FULL 2/2 20TSSOP
39.000 ₫ Renesas Electronics Corporation
ICL3225EIAZ
IC TRANSCEIVER FULL 2/2 20SSOP
80.000 ₫ Renesas Electronics Corporation
