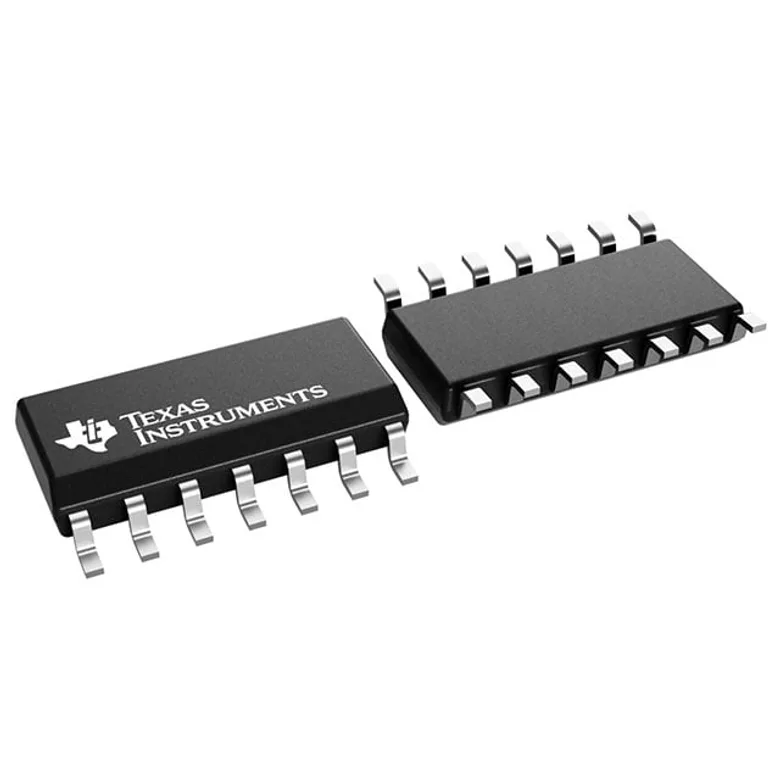

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments NA556D
Manufacturer
Manufacturer Product Number
NA556D
Description
IC OSC TIMER DUAL 14-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC OSC TIMER DUAL 14-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-40°C ~ 105°C
Voltage - Supply
4.5V ~ 16V
Count
-
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Frequency
-
Package / Case
14-SOIC (0.154", 3.90mm Width)
Type
555 Type, Timer/Oscillator (Dual)
Current - Supply
20 mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
NA556D
1571937
296-41584-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,416
Packaging Quantity Unit Price Ext Price
1 31.000 ₫ 31.000 ₫
31.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
31.000 ₫
31.000 ₫
10
23.000 ₫
230.000 ₫
50
19.000 ₫
950.000 ₫
100
18.000 ₫
1.800.000 ₫
250
17.000 ₫
4.250.000 ₫
500
17.000 ₫
8.500.000 ₫
1,000
16.000 ₫
16.000.000 ₫
MOQ 1 · Order multiple 1
