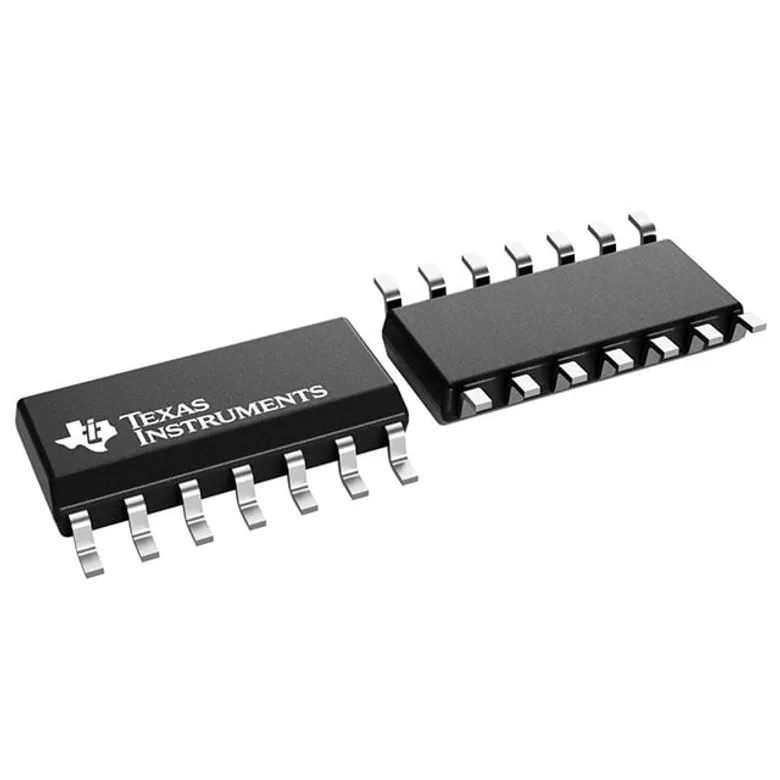

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments NE556DR
Manufacturer
Manufacturer Product Number
NE556DR
Description
IC OSC TIMER DUAL 100KHZ 14-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC OSC TIMER DUAL 100KHZ 14-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4.5V ~ 16V
Count
-
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Frequency
100kHz
Package / Case
14-SOIC (0.154", 3.90mm Width)
Type
555 Type, Timer/Oscillator (Dual)
Current - Supply
20 mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
NE556DR
2254905
296-26240-1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,392
Packaging Quantity Unit Price Ext Price
1 11.000 ₫ 11.000 ₫
11.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
11.000 ₫
11.000 ₫
10
8.000 ₫
80.000 ₫
25
7.000 ₫
175.000 ₫
100
6.000 ₫
600.000 ₫
250
6.000 ₫
1.500.000 ₫
500
6.000 ₫
3.000.000 ₫
1,000
5.000 ₫
5.000.000 ₫
MOQ 1 · Order multiple 1
