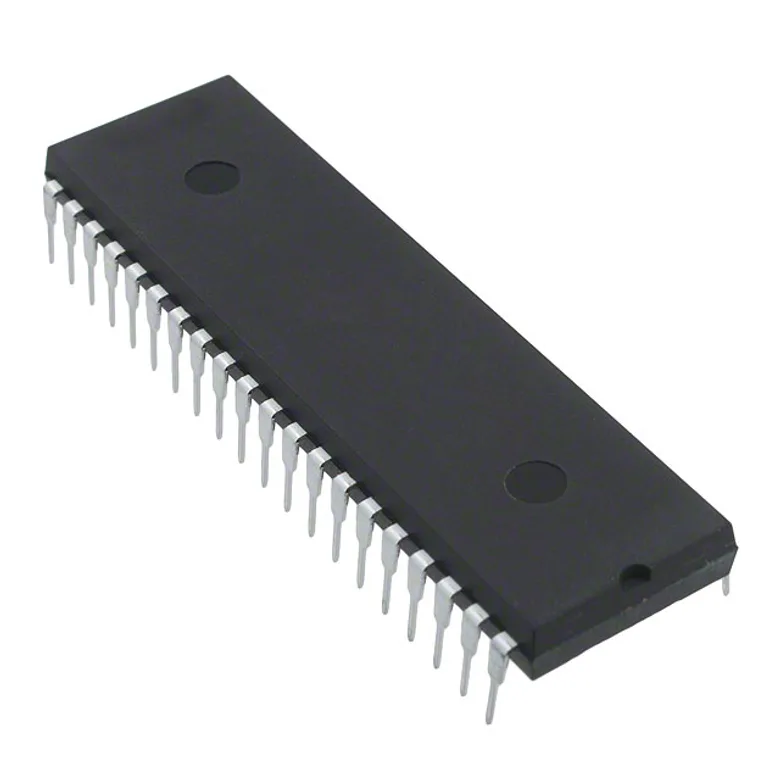

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments PC16550DN
Manufacturer
Manufacturer Product Number
PC16550DN
Description
IC UART WITH FIFO 40-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
UART IC 1, UART Channel 16 Byte 40-DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Voltage - Supply
4.5V ~ 5.5V
FIFO's
16 Byte
Number of Channels
1, UART
Features
-
Protocol
-
Mounting Type
Through Hole
Data Rate (Max)
1.5Mbps
Supplier Device Package
40-DIP
With Auto Flow Control
-
With IrDA Encoder/Decoder
-
With False Start Bit Detection
Yes
With Modem Control
Yes
Package / Case
40-DIP (0.600", 15.24mm)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PC16550DN
3695706
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
