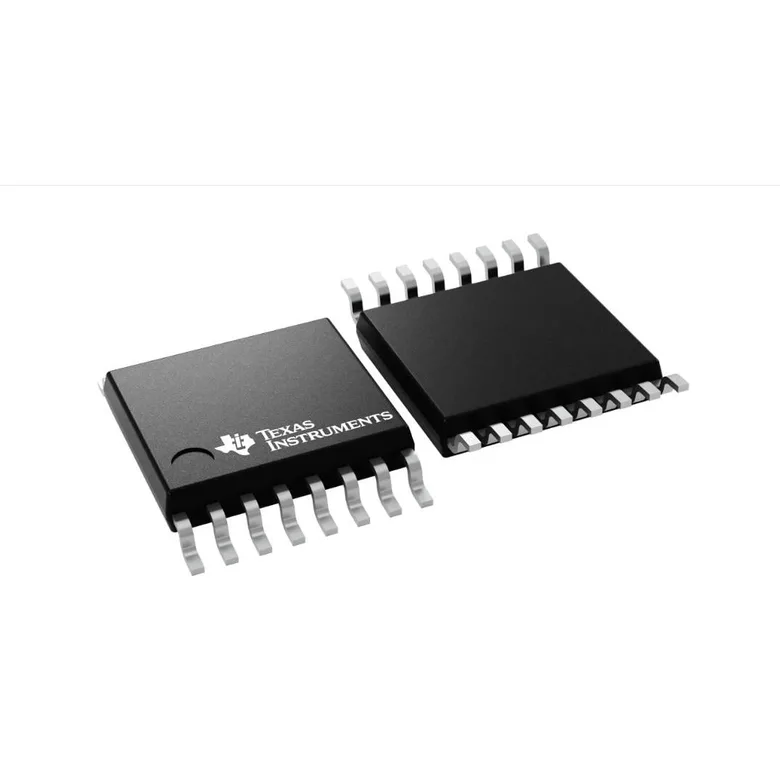

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments PCA9534DGVR
Manufacturer
Manufacturer Product Number
PCA9534DGVR
Description
IC XPND 400KHZ I2C SMBUS 16TVSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
I/O Expander 8 I2C, SMBus 400 kHz 16-TVSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 85°C
Interrupt Output
Yes
DigiKey Programmable
Not Verified
Voltage - Supply
2.3V ~ 5.5V
Output Type
Push-Pull
Features
POR
Mounting Type
Surface Mount
Clock Frequency
400 kHz
Supplier Device Package
16-TVSOP
Interface
I2C, SMBus
Number of I/O
8
Package / Case
16-TFSOP (0.173", 4.40mm Width)
Current - Output Source/Sink
10mA, 25mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Additional Resources
Attribute
Description
Part Number Alias
PCA9534DGVR
1573038
296-21762-1-ND
296-21762-2-ND
296-21762-6-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 60.000 ₫ 60.000 ₫
60.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
60.000 ₫
60.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,000
52.000 ₫
104.000.000 ₫
4,000
51.000 ₫
204.000.000 ₫
MOQ 2,000 · Order multiple 2,000
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
60.000 ₫
60.000 ₫
MOQ 1 · Order multiple 1
