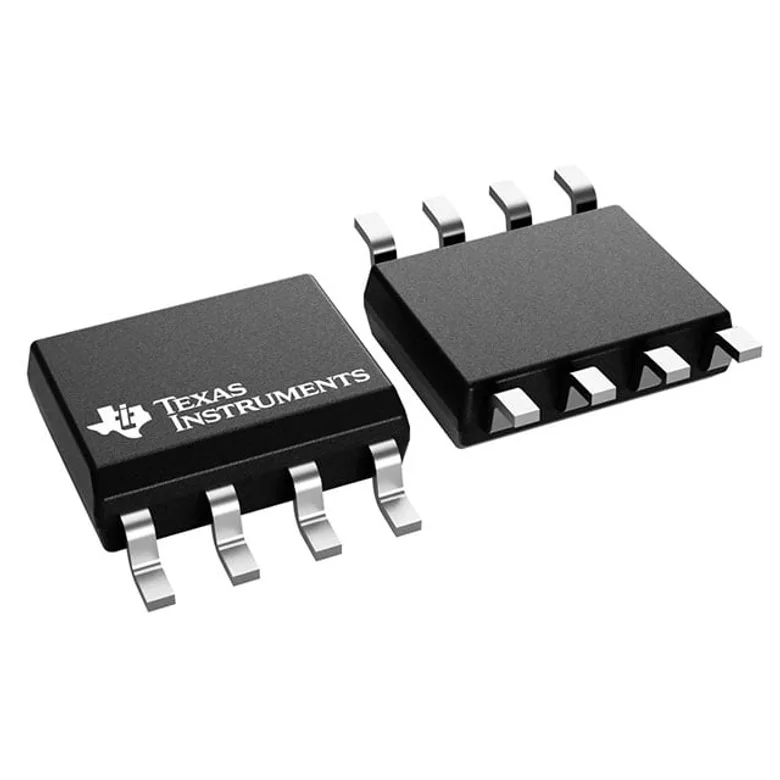

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments PCA9536D
Manufacturer
Manufacturer Product Number
PCA9536D
Description
IC XPNDR 400KHZ I2C SMBUS 8SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
I/O Expander 4 I2C, SMBus 400 kHz 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Interrupt Output
No
DigiKey Programmable
Not Verified
Voltage - Supply
2.3V ~ 5.5V
Output Type
Push-Pull
Features
POR
Mounting Type
Surface Mount
Clock Frequency
400 kHz
Supplier Device Package
8-SOIC
Interface
I2C, SMBus
Number of I/O
4
Package / Case
8-SOIC (0.154", 3.90mm Width)
Current - Output Source/Sink
10mA, 25mA
