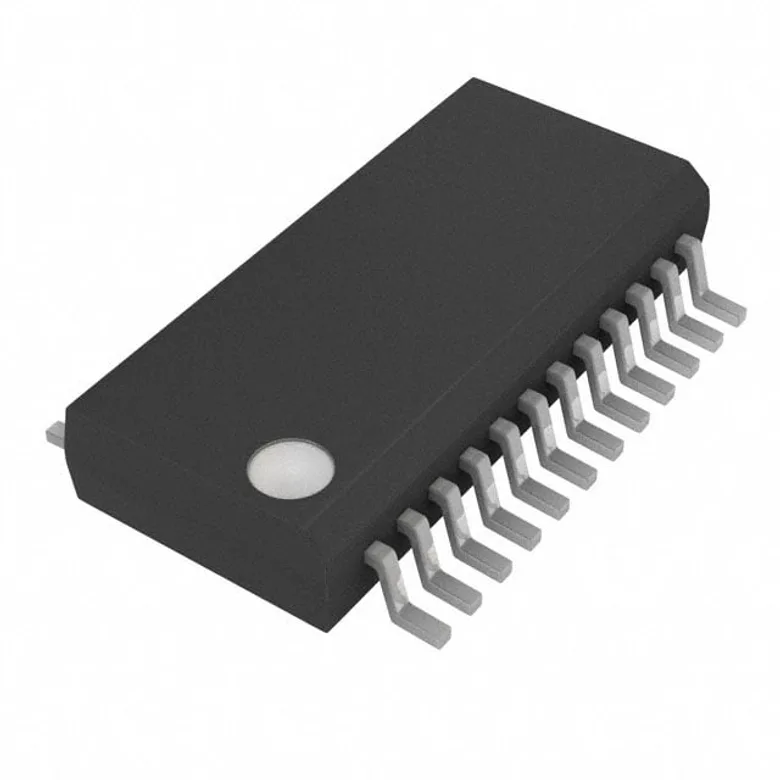

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments PCF8575CDBQR
Manufacturer
Manufacturer Product Number
PCF8575CDBQR
Description
IC XPNDR 400KHZ I2C SMBUS 24SSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
I/O Expander 16 I2C, SMBus 400 kHz 24-SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Interrupt Output
Yes
DigiKey Programmable
Not Verified
Voltage - Supply
4.5V ~ 5.5V
Output Type
Open Drain
Features
POR
Mounting Type
Surface Mount
Clock Frequency
400 kHz
Supplier Device Package
24-SSOP
Interface
I2C, SMBus
Number of I/O
16
Package / Case
24-SSOP (0.154", 3.90mm Width)
Current - Output Source/Sink
10mA, 25mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Training Modules
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PCF8575CDBQR
758758
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
PCF8575DBR
IC XPNDR 400KHZ I2C SMBUS 24SSOP
52.000Â â‚« Texas Instruments
MAX7313AEG+T
IC XPNDR 400KHZ I2C SMBUS 24QSOP
229.000Â â‚« Analog Devices Inc./Maxim Integrated
MAX7313AEG+
IC XPNDR 400KHZ I2C SMBUS 24QSOP
229.000Â â‚« Analog Devices Inc./Maxim Integrated
