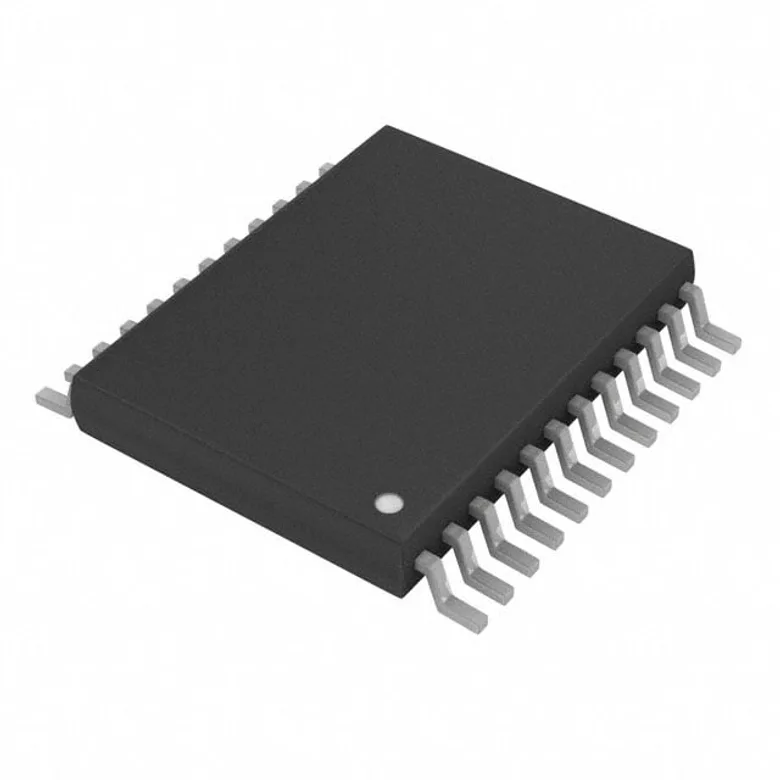

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments PCF8575CDGVR
Manufacturer
Manufacturer Product Number
PCF8575CDGVR
Description
IC XPND 400KHZ I2C SMBUS 24TVSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
I/O Expander 16 I2C, SMBus 400 kHz 24-TVSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Interrupt Output
Yes
DigiKey Programmable
Not Verified
Voltage - Supply
4.5V ~ 5.5V
Output Type
Open Drain
Features
POR
Mounting Type
Surface Mount
Clock Frequency
400 kHz
Supplier Device Package
24-TVSOP
Interface
I2C, SMBus
Number of I/O
16
Package / Case
24-TFSOP (0.173", 4.40mm Width)
Current - Output Source/Sink
10mA, 25mA
Documents & Media
Resource Type
Link
Datasheets
Training Modules
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PCF8575CDGVR
758759
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
PCF8575PWR
IC XPND 400KHZ I2C SMBUS 24TSSOP
36.000Â â‚« Texas Instruments
