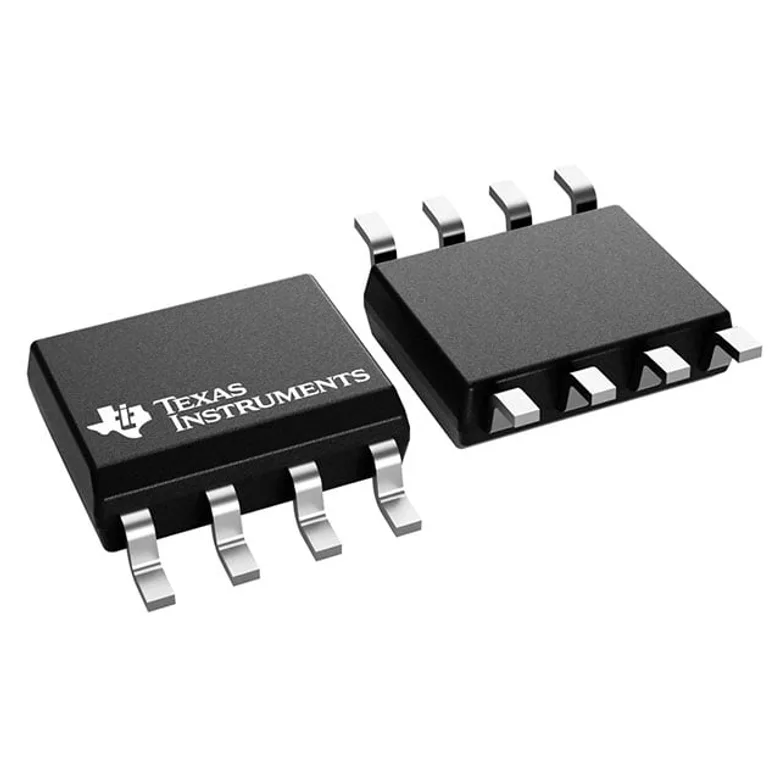

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments SA555D
Manufacturer
Manufacturer Product Number
SA555D
Description
IC OSC SNGL TIMER 100KHZ 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC OSC SNGL TIMER 100KHZ 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
4.5V ~ 16V
Count
-
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Frequency
100kHz
Package / Case
8-SOIC (0.154", 3.90mm Width)
Type
555 Type, Timer/Oscillator (Single)
Current - Supply
10 mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Featured Products
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
SA555D
380234
296-9681-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 690
Packaging Quantity Unit Price Ext Price
1 24.000 ₫ 24.000 ₫
24.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
24.000 ₫
24.000 ₫
10
18.000 ₫
180.000 ₫
75
14.000 ₫
1.050.000 ₫
150
14.000 ₫
2.100.000 ₫
300
13.000 ₫
3.900.000 ₫
525
13.000 ₫
6.825.000 ₫
MOQ 1 · Order multiple 1
