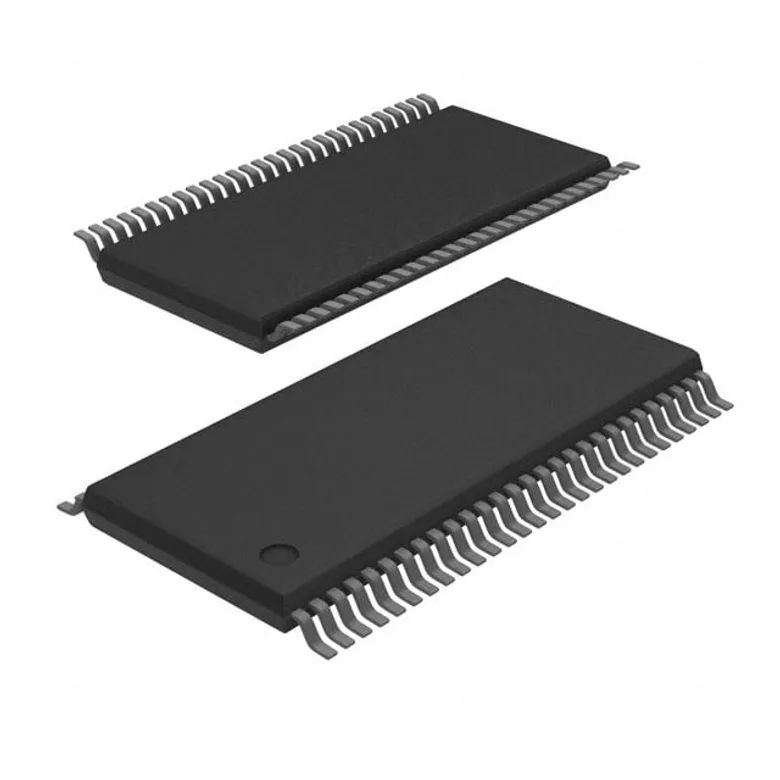

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments SN74ALVC7814-25DLR
Manufacturer
Manufacturer Product Number
SN74ALVC7814-25DLR
Description
IC FIFO ASYNC 64X18 18NS 56SSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
Asynchronous FIFO 1.125K (64 x 18) Uni-Directional 40MHz 18ns 56-SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Current - Supply (Max)
40µA
Operating Temperature
0°C ~ 70°C
DigiKey Programmable
Not Verified
Data Rate
40MHz
Mounting Type
Surface Mount
Access Time
18ns
Supplier Device Package
56-SSOP
Memory Size
1.125K (64 x 18)
Package / Case
56-BSSOP (0.295", 7.50mm Width)
Bus Directional
Uni-Directional
Expansion Type
Width
Programmable Flags Support
Yes
Retransmit Capability
No
FWFT Support
No
Function
Asynchronous
Voltage - Supply
3 V ~ 3.6 V
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
SN74ALVC7814-25DLR
1568349
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
SN74ALVC7814-40DL
IC FIFO ASYNC 64X18 20NS 56SSOP
329.000Â â‚« Texas Instruments
