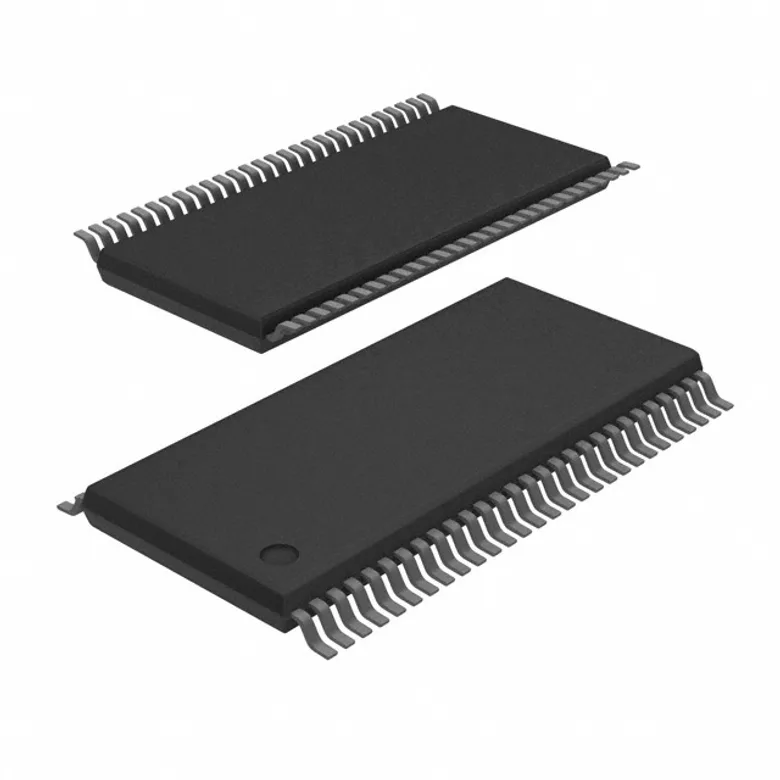

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments SN74ALVCH16525DLR
Manufacturer
Manufacturer Product Number
SN74ALVCH16525DLR
Description
IC UNIV BUS TXRX 56-SSOP
Manufacturer Standard Lead Time 10 Days
Detailed Description
Universal Bus Transceiver 18-Bit 56-SSOP
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Logic Type
Universal Bus Transceiver
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
1.65V ~ 3.6V
Current - Output High, Low
24mA, 24mA
Number of Circuits
18-Bit
Mounting Type
Surface Mount
Supplier Device Package
56-SSOP
Package / Case
56-BSSOP (0.295", 7.50mm Width)
Documents & Media
Resource Type
Link
EDA Models
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
SN74ALVCH16525DLR
11517424
2156-SN74ALVCH16525DLR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 10,000
Packaging Quantity Unit Price Ext Price
1 46.000 ₫ 46.000 ₫
46.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
170
46.000 ₫
7.820.000 ₫
MOQ 170 · Order multiple 170
