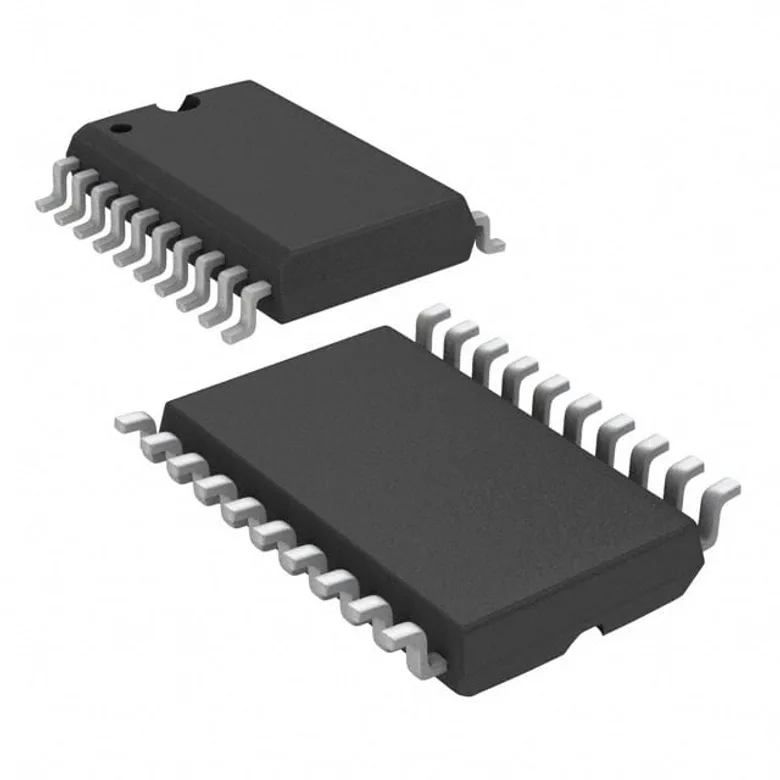

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments SN74LS299DW
Manufacturer
Manufacturer Product Number
SN74LS299DW
Description
IC SR TRI-STATE 8BIT 20-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
Shift Shift Register 1 Element 8 Bit 20-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Number of Bits per Element
8
Logic Type
Shift Register
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4.75V ~ 5.25V
Output Type
Tri-State
Mounting Type
Surface Mount
Supplier Device Package
20-SOIC
Number of Elements
1
Package / Case
20-SOIC (0.295", 7.50mm Width)
Function
Universal
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Additional Resources
Attribute
Description
Part Number Alias
SN74LS299DW
377724
296-3691-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 88.000 ₫ 88.000 ₫
88.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
300
88.000 ₫
26.400.000 ₫
MOQ 300 · Order multiple 300
Substitutes
74F299SCX
IC SR TRI-STATE 8BIT 20-SOIC
7.000 ₫ Fairchild Semiconductor
SN74ALS299DW
IC SR TRI-STATE 8BIT 20-SOIC
163.000 ₫ Texas Instruments
SN74F299DW
IC SR TRI-STATE 8BIT 20-SOIC
29.000 ₫ Texas Instruments
74F299SCX
PARALLEL IN PARALLEL OUT, F/FAST
7.000 ₫ National Semiconductor
SN74F299DWR
IC SR TRI-STATE 8BIT 20-SOIC
16.000 ₫ Texas Instruments
