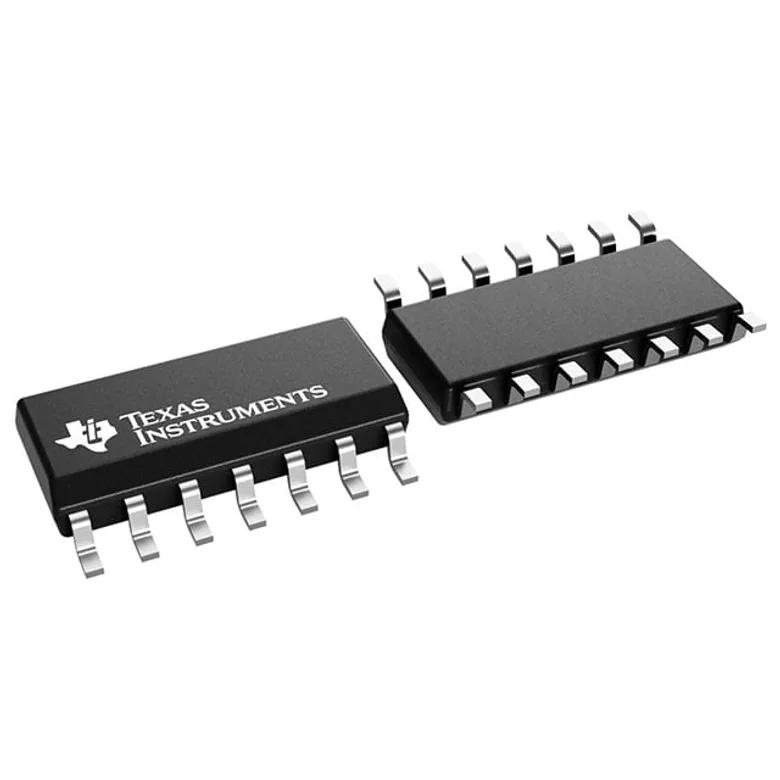

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments SN74LS628DR
Manufacturer
Manufacturer Product Number
SN74LS628DR
Description
IC OSC VCO 20MHZ 14-SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
VCO IC 20MHz 14-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4.75V ~ 5.25V
Count
-
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Frequency
20MHz
Package / Case
14-SOIC (0.154", 3.90mm Width)
Type
VCO
Current - Supply
20 mA
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
SN74LS628DR
4759015
2156-SN74LS628DR-ND
296-37424-1-ND
296-37424-2-ND
296-37424-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 5,000
Packaging Quantity Unit Price Ext Price
1 77.000 ₫ 77.000 ₫
77.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
102
77.000 ₫
7.854.000 ₫
MOQ 102 · Order multiple 102
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
90.000 ₫
90.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
64.000 ₫
160.000.000 ₫
MOQ 2,500 · Order multiple 2,500
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
90.000 ₫
90.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
SN74LS628D
IC OSC VCO 20MHZ 14-SOIC
82.000 ₫ Texas Instruments
Substitutes
SN74LS624DR
IC OSC VCO 20MHZ 14-SOIC
61.000 ₫ Texas Instruments
