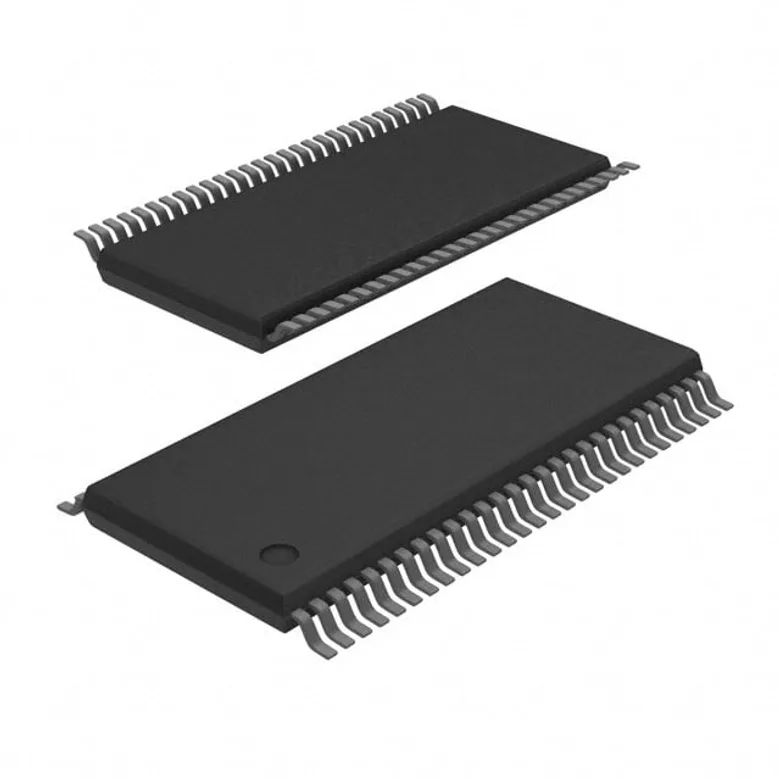

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments SN74LVTH16501DLR
Manufacturer
Manufacturer Product Number
SN74LVTH16501DLR
Description
IC UNIV BUS TXRX 56-SSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC UNIV BUS TXRX 56-SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Logic Type
Universal Bus Transceiver
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
2.7V ~ 3.6V
Current - Output High, Low
32mA, 64mA
Number of Circuits
18-Bit
Mounting Type
Surface Mount
Supplier Device Package
56-SSOP
Package / Case
56-BSSOP (0.295", 7.50mm Width)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Additional Resources
Attribute
Description
Part Number Alias
SN74LVTH16501DLR
562950
296-SN74LVTH16501DLRTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 43.000 ₫ 43.000 ₫
43.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
43.000 ₫
43.000.000 ₫
2,000
42.000 ₫
84.000.000 ₫
3,000
41.000 ₫
123.000.000 ₫
5,000
41.000 ₫
205.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Alternate Packaging
SN74LVTH16501DL
IC UNIV BUS TXRX 56-SSOP
59.000 ₫ Texas Instruments
