Image shown is representative only. Exact specifications should be obtained from the product datasheet.

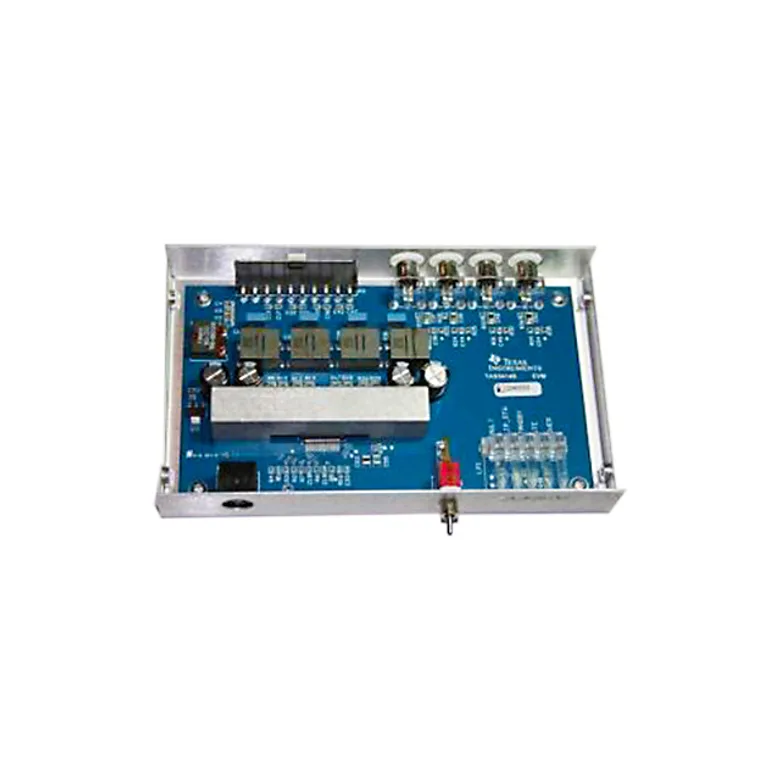

Texas Instruments TAS5514BQ1DKDEVM
Manufacturer
Manufacturer Product Number
TAS5514BQ1DKDEVM
Description
EVAL BOARD FOR TAS5514B
Manufacturer Standard Lead Time Contact us
Detailed Description
TAS5514B - 4-Channel (Quad) Output Class D Audio Amplifier Evaluation Board
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Contents
Board(s)
Voltage - Supply
6V ~ 24V
Output Type
4-Channel (Quad)
Max Output Power x Channels @ Load
150W x 2 @ 2Ohm; 79W x 4 @ 4Ohm
Utilized IC / Part
TAS5514B
Note
-
Amplifier Type
Class D
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
TAS5514BQ1DKDEVM
3902270
296-49267-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 10
Packaging Quantity Unit Price Ext Price
1 6.701.000Â â‚« 6.701.000Â â‚«
6.701.000Â â‚«
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
6.701.000Â â‚«
6.701.000Â â‚«
MOQ 1 · Order multiple 1
