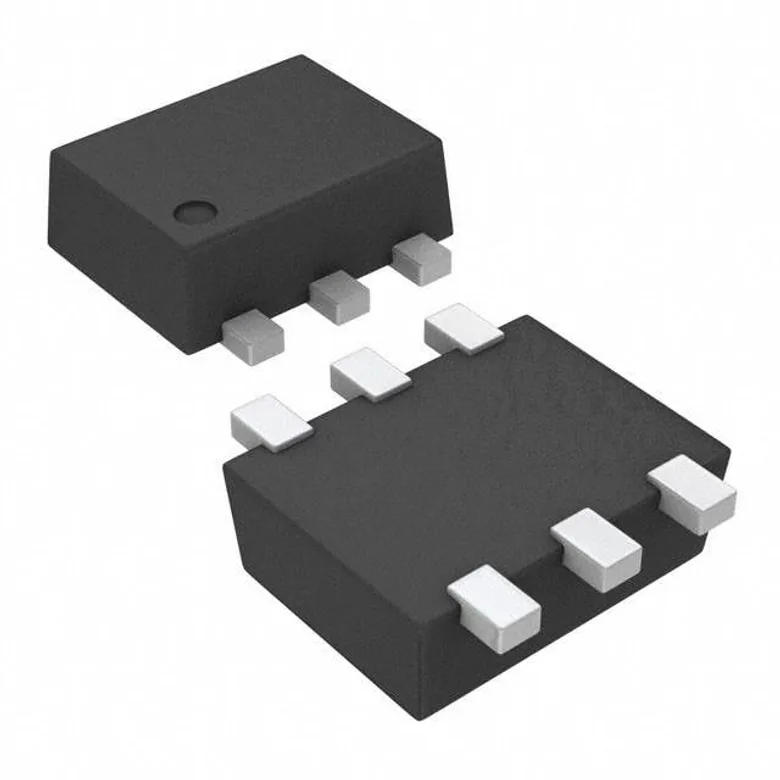

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments TMP302DDRLT
Manufacturer
Manufacturer Product Number
TMP302DDRLT
Description
THERMOSTAT ACT LOW OPEN DRN 6SOT
Manufacturer Standard Lead Time Contact us
Detailed Description
THERMOSTAT ACT LOW OPEN DRN 6SOT
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Accuracy
±2°C
Current - Output (Max)
10mA
Operating Temperature
-40°C ~ 125°C
Output Type
Open Drain
Current - Supply
8µA
Features
Selectable Trip Point
Mounting Type
Surface Mount
Output
Active Low
Switching Temperature
110°C, 115°C, 120°C, 125°C
Supplier Device Package
SOT-5X3
Output Function
/OverTemp
Package / Case
SOT-563, SOT-666
Trip Temperature Threshold
Hot
Selectable Hysteresis
Yes
Voltage - Supply
1.4 V ~ 3.6 V
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
TMP302DDRLT
2165917
296-25147-2-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 15.000 ₫ 15.000 ₫
15.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
15.000 ₫
15.000.000 ₫
MOQ 1,000 · Order multiple 1,000
