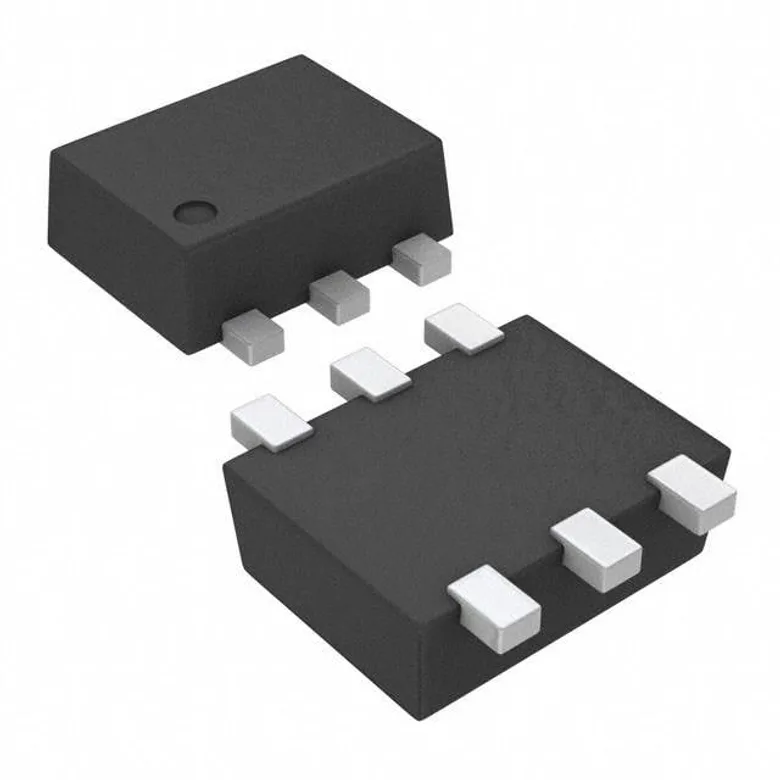

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments TMP303FDRLT
Manufacturer
Manufacturer Product Number
TMP303FDRLT
Description
THERMOSTAT 80DEG ACT HI SOT563-6
Manufacturer Standard Lead Time Contact us
Detailed Description
Thermostat 80°C Active High Push-Pull SOT-5X3
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Accuracy
±1°C
Current - Output (Max)
8mA
Operating Temperature
-40°C ~ 125°C
Output Type
Push-Pull
Current - Supply
4µA
Features
Selectable Hysteresis
Mounting Type
Surface Mount
Output
Active High
Switching Temperature
80°C
Supplier Device Package
SOT-5X3
Output Function
OverTemp
Package / Case
SOT-563, SOT-666
Trip Temperature Threshold
Hot
Selectable Hysteresis
Yes
Voltage - Supply
1.4 V ~ 3.6 V
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
TMP303FDRLT
7650285
296-47164-1-ND
296-47164-2-ND
296-47164-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 458
Packaging Quantity Unit Price Ext Price
1 55.000 ₫ 55.000 ₫
55.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
55.000 ₫
55.000 ₫
5
49.000 ₫
245.000 ₫
10
46.000 ₫
460.000 ₫
25
44.000 ₫
1.100.000 ₫
50
42.000 ₫
2.100.000 ₫
100
40.000 ₫
4.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
250
38.000 ₫
9.500.000 ₫
MOQ 250 · Order multiple 250
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
68.000 ₫
68.000 ₫
5
58.000 ₫
290.000 ₫
10
54.000 ₫
540.000 ₫
25
49.000 ₫
1.225.000 ₫
50
46.000 ₫
2.300.000 ₫
100
43.000 ₫
4.300.000 ₫
MOQ 1 · Order multiple 1
