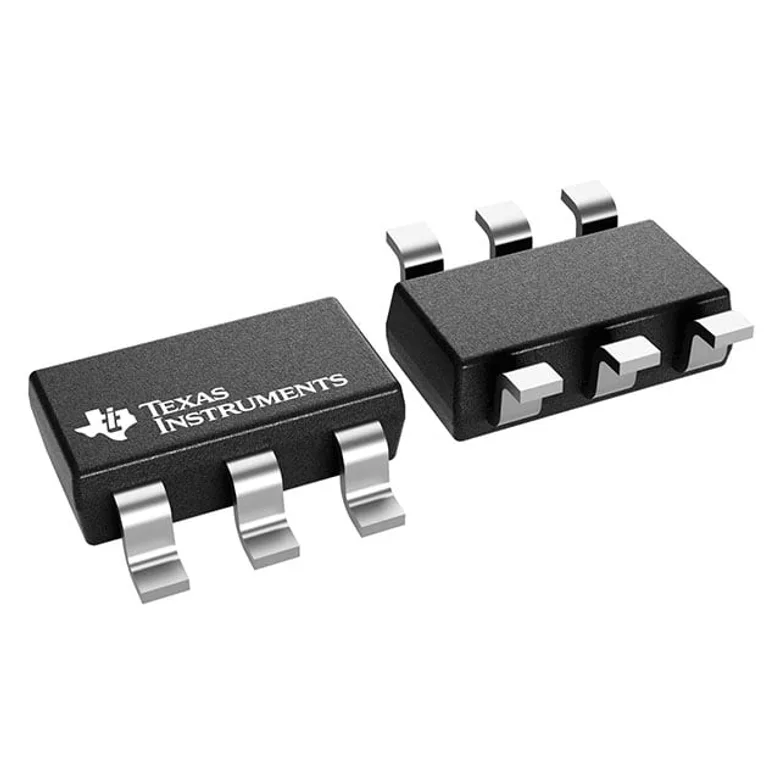

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments TPS563249DDCR
Manufacturer
Manufacturer Product Number
TPS563249DDCR
Description
IC REG BUCK ADJ 3A SOT23
Manufacturer Standard Lead Time Contact us
Detailed Description
IC REG BUCK ADJ 3A SOT23
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 125°C (TJ)
Output Configuration
Positive
Frequency - Switching
1.4MHz
Output Type
Adjustable
Voltage - Input (Max)
17V
Mounting Type
Surface Mount
Number of Outputs
1
Current - Output
3A
Supplier Device Package
SOT-23-THIN
Synchronous Rectifier
Yes
Voltage - Output (Max)
7V
Voltage - Input (Min)
4.5V
Package / Case
SOT-23-6 Thin, TSOT-23-6
Voltage - Output (Min/Fixed)
0.6V
Topology
Buck
Function
Step-Down
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
TPS563249DDCR
10435206
296-TPS563249DDCRCT-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,738
Packaging Quantity Unit Price Ext Price
1 20.000 ₫ 20.000 ₫
20.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
20.000 ₫
20.000 ₫
10
14.000 ₫
140.000 ₫
25
13.000 ₫
325.000 ₫
100
11.000 ₫
1.100.000 ₫
250
10.000 ₫
2.500.000 ₫
500
10.000 ₫
5.000.000 ₫
1,000
10.000 ₫
10.000.000 ₫
MOQ 1 · Order multiple 1
