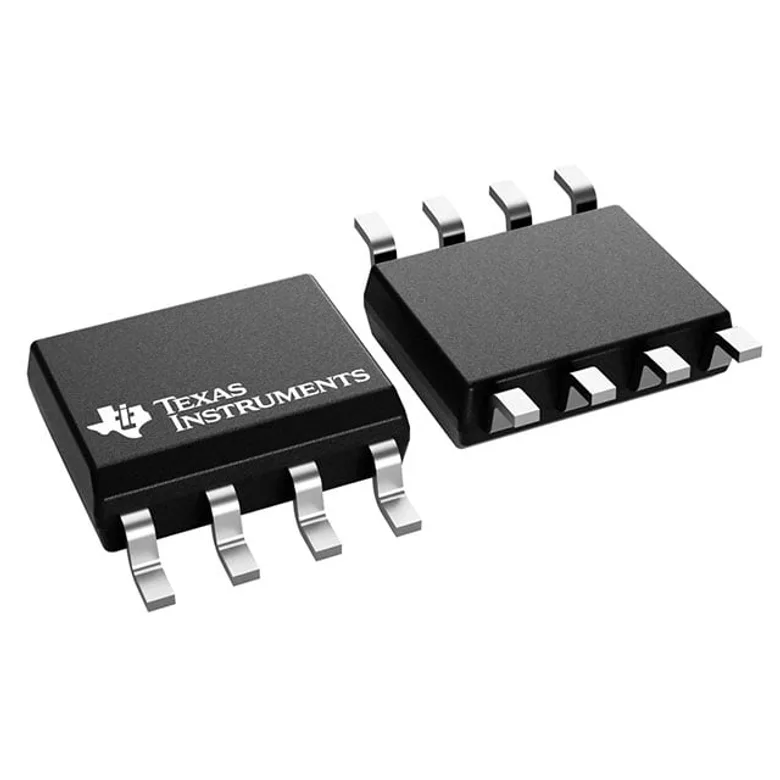

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments UCC5350MCDR
Manufacturer
Manufacturer Product Number
UCC5350MCDR
Description
DGTL ISO 3KV 1CH GATE DVR 8SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISO 3KV 1CH GATE DVR 8SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Voltage - Output Supply
13.2V ~ 33V
Operating Temperature
-40°C ~ 125°C
Qualification
-
Voltage - Forward (Vf) (Typ)
-
Current - Peak Output
-
Technology
Capacitive Coupling
Current - Output High, Low
5A, 5A
Voltage - Isolation
3000Vrms
Approval Agency
CQC, CSA, UR, VDE
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
10ns, 10ns
Common Mode Transient Immunity (Min)
100kV/µs
Propagation Delay tpLH / tpHL (Max)
65ns, 65ns
Pulse Width Distortion (Max)
20ns
Grade
-
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
UCC5350MCDR
9462948
296-50189-1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 53
Packaging Quantity Unit Price Ext Price
1 57.000 ₫ 57.000 ₫
57.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
57.000 ₫
57.000 ₫
10
43.000 ₫
430.000 ₫
25
39.000 ₫
975.000 ₫
100
35.000 ₫
3.500.000 ₫
250
33.000 ₫
8.250.000 ₫
500
32.000 ₫
16.000.000 ₫
1,000
31.000 ₫
31.000.000 ₫
MOQ 1 · Order multiple 1
