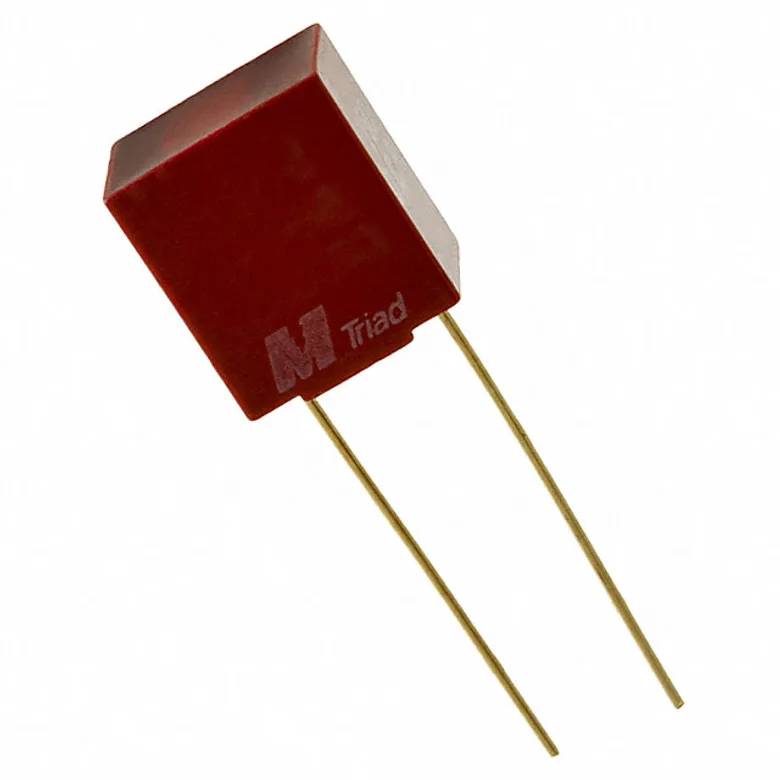

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Triad Magnetics SP-128
Manufacturer
Manufacturer Product Number
SP-128
Description
AUDIO XFMR TH
Manufacturer Standard Lead Time Contact us
Detailed Description
AUDIO XFMR TH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Triad Magnetics
Return Loss
-
Operating Temperature
-40°C ~ 85°C
Termination Style
PC Pin
Transformer Type
-
Turns Ratio - Primary:Secondary
-
Insertion Loss
-
Frequency Range
-
Size / Dimension
0.410" L x 0.310" W (10.41mm x 7.87mm)
Voltage - Isolation
1000VRMS @ 1 Second
Approval Agency
-
Mounting Type
Through Hole
Height - Seated (Max)
0.465" (11.80mm)
Impedance - Primary (Ohms)
-
Impedance - Secondary (Ohms)
-
DC Resistance (DCR) - Primary
15Ohm
DC Resistance (DCR) - Secondary
-
Frequency Response
-
Power Level
-
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
SP-128
242678
237-1156-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 426.000 ₫ 426.000 ₫
426.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
426.000 ₫
426.000 ₫
MOQ 1 · Order multiple 1
For Use With
SP-310
TRANSF AUDIO SHIELD
115.000 ₫ Triad Magnetics
