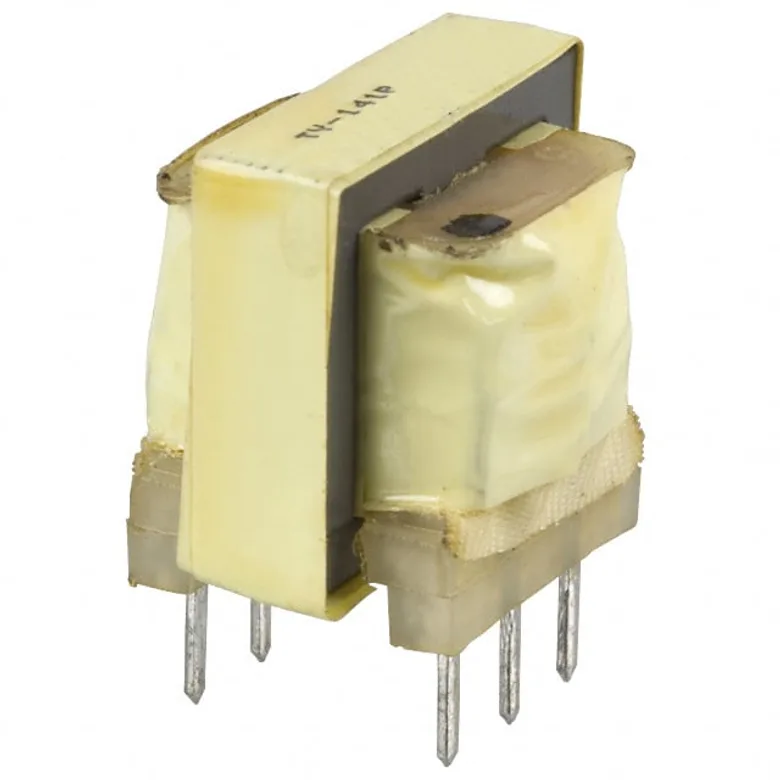

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Triad Magnetics TY-141P-B
Manufacturer
Manufacturer Product Number
TY-141P-B
Description
AUDIO XFMR 10KCT / 10KCT TH
Manufacturer Standard Lead Time Contact us
Detailed Description
AUDIO XFMR 10KCT / 10KCT TH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Triad Magnetics
Return Loss
26dB
Operating Temperature
-20°C ~ 85°C
Termination Style
PC Pin
Transformer Type
Data/Voice Coupling
Turns Ratio - Primary:Secondary
1:1
Insertion Loss
1.5dB @ 1kHz
Frequency Range
200Hz ~ 15kHz
Size / Dimension
0.812" L x 0.700" W (20.62mm x 17.78mm)
Voltage - Isolation
1500V
Approval Agency
-
Mounting Type
Through Hole
Height - Seated (Max)
0.740" (18.80mm)
Impedance - Primary (Ohms)
10kCT
Impedance - Secondary (Ohms)
10kCT
DC Resistance (DCR) - Primary
820Ohm
DC Resistance (DCR) - Secondary
1.07kOhm
Frequency Response
±2dB
Power Level
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
TY-141P-B
4746208
TY-141P-B-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 28
Packaging Quantity Unit Price Ext Price
1 151.000 ₫ 151.000 ₫
151.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
151.000 ₫
151.000 ₫
10
136.000 ₫
1.360.000 ₫
25
131.000 ₫
3.275.000 ₫
50
127.000 ₫
6.350.000 ₫
100
123.000 ₫
12.300.000 ₫
250
118.000 ₫
29.500.000 ₫
500
114.000 ₫
57.000.000 ₫
1,000
111.000 ₫
111.000.000 ₫
MOQ 1 · Order multiple 1
