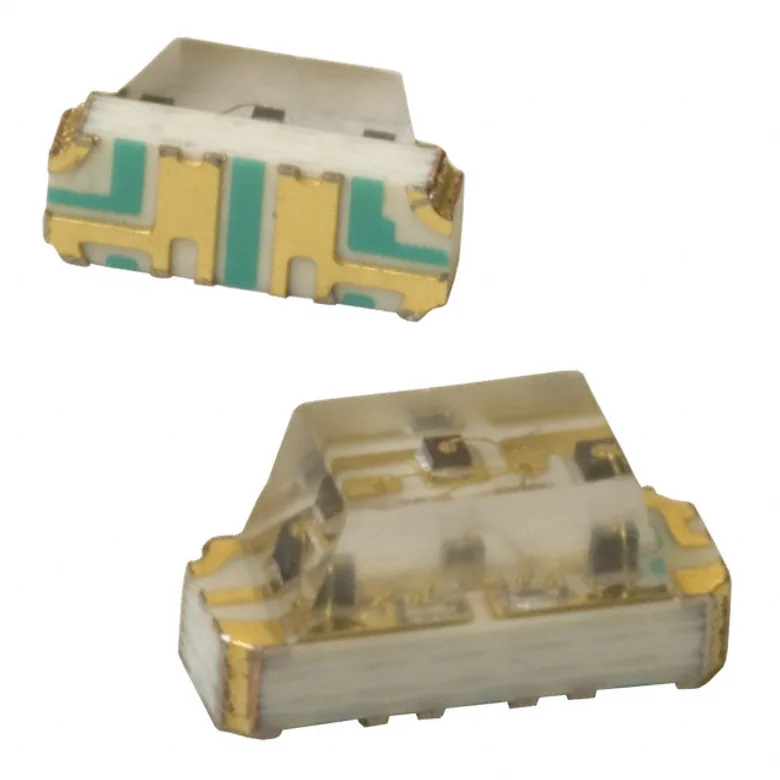

TT Electronics/Optek Technology OVSRRGBBC9
Manufacturer
Manufacturer Product Number
OVSRRGBBC9
Description
LED RGB CLEAR SMD R/A
Manufacturer Standard Lead Time Contact us
Detailed Description
Red, Green, Blue (RGB) 623nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 2-SMD, No Lead
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
TT Electronics/Optek Technology
Product Status
Obsolete
Voltage - Forward (Vf) (Typ)
2V Red, 3.3V Green, 3.3V Blue
Color
Red, Green, Blue (RGB)
Size / Dimension
2.70mm L x 1.35mm W
Features
-
Lens Color
Colorless
Current - Test
20mA Red, 20mA Green, 20mA Blue
Viewing Angle
120°
Mounting Type
Surface Mount, Right Angle
Height (Max)
1.00mm
Wavelength - Peak
632nm Red, 518nm Green, 468nm Blue
Wavelength - Dominant
623nm Red, 525nm Green, 470nm Blue
Supplier Device Package
SMD
Package / Case
2-SMD, No Lead
Lens Transparency
Clear
Lens Style
Rectangle with Flat Top
Lens Size
1.50mm x 1.00mm
Millicandela Rating
72mcd Red, 180mcd Green, 45mcd Blue
Configuration
Common Anode
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
OVSRRGBBC9
827163
365-1227-2-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 20.000 ₫ 20.000 ₫
20.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,000
20.000 ₫
40.000.000 ₫
4,000
19.000 ₫
76.000.000 ₫
6,000
19.000 ₫
114.000.000 ₫
10,000
18.000 ₫
180.000.000 ₫
14,000
18.000 ₫
252.000.000 ₫
MOQ 2,000 · Order multiple 2,000
