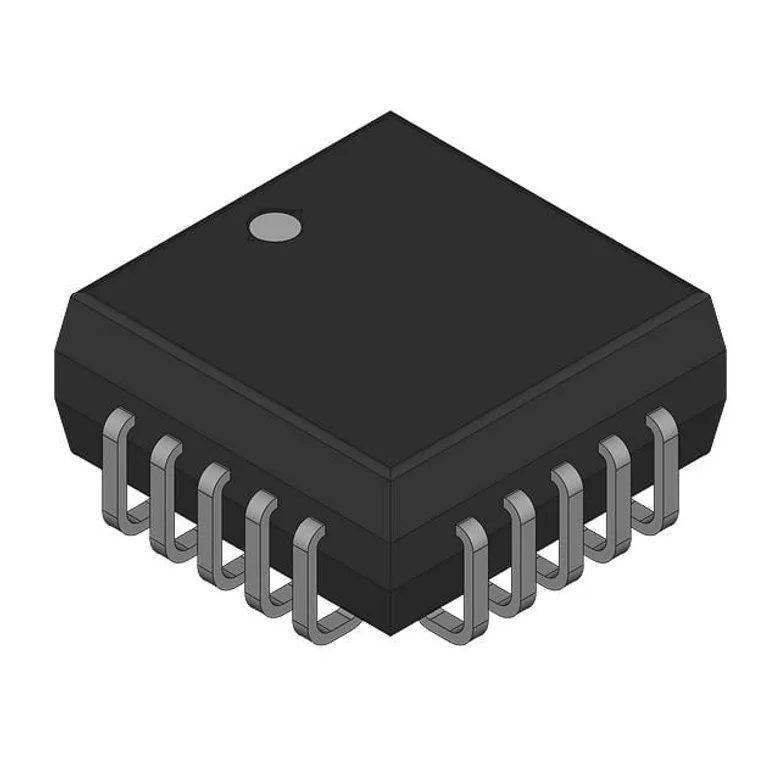

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Vantis PAL16L8BCNL
Manufacturer
Manufacturer Product Number
PAL16L8BCNL
Description
OT PLD, 15NS, PAL-TYPE, TTL, PQC
Manufacturer Standard Lead Time 10 Days
Detailed Description
- Programmable Logic Device (PLD) IC 8 Macrocells 20-PLCC (9x9)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Vantis
DigiKey Programmable
Not Verified
Mounting Type
Surface Mount
Voltage - Input
4.75V ~ 5.25V
Supplier Device Package
20-PLCC (9x9)
Programmable Type
PAL
Number of Macrocells
8
Package / Case
20-LCC (J-Lead)
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
PAL16L8BCNL
12605784
2156-PAL16L8BCNL-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 11,338
Packaging Quantity Unit Price Ext Price
1 80.000Â â‚« 80.000Â â‚«
80.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
98
80.000Â â‚«
7.840.000Â â‚«
MOQ 98 · Order multiple 98
