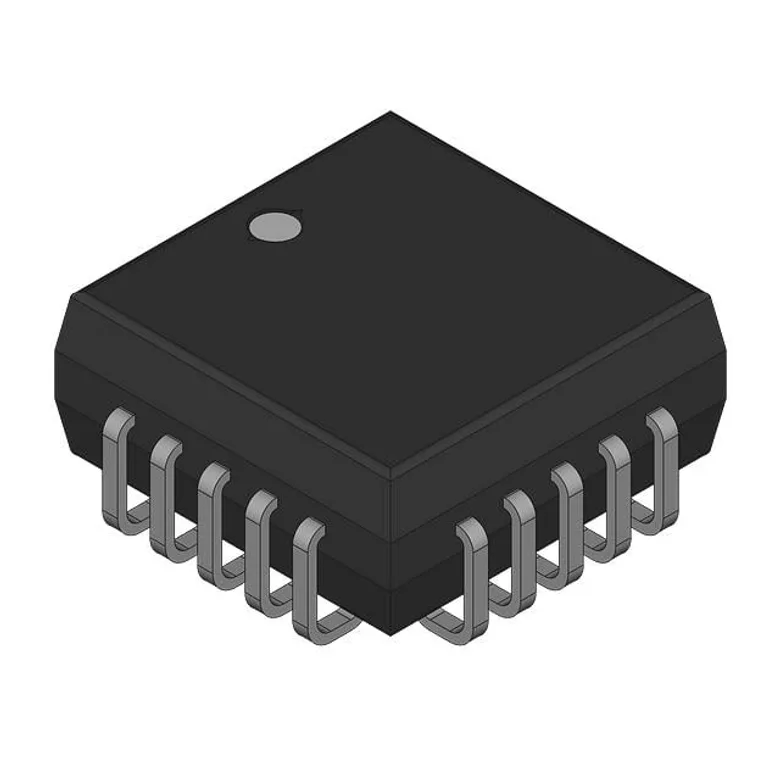

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Vantis PAL16R6-5JC
Manufacturer
Manufacturer Product Number
PAL16R6-5JC
Description
OT PLD, 5NS, PAL-TYPE, TTL, PQCC
Manufacturer Standard Lead Time 10 Days
Detailed Description
- Programmable Logic Device (PLD) IC 6 Macrocells 20-CDIP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Vantis
DigiKey Programmable
Not Verified
Mounting Type
Through Hole
Voltage - Input
4.75V ~ 5.25V
Supplier Device Package
20-CDIP
Programmable Type
PAL
Number of Macrocells
6
Package / Case
20-CDIP (0.300", 7.62mm)
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
PAL16R6-5JC
12592082
2156-PAL16R6-5JC-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 18,004
Packaging Quantity Unit Price Ext Price
1 682.000Â â‚« 682.000Â â‚«
682.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
11
682.000Â â‚«
7.502.000Â â‚«
MOQ 11 · Order multiple 11
