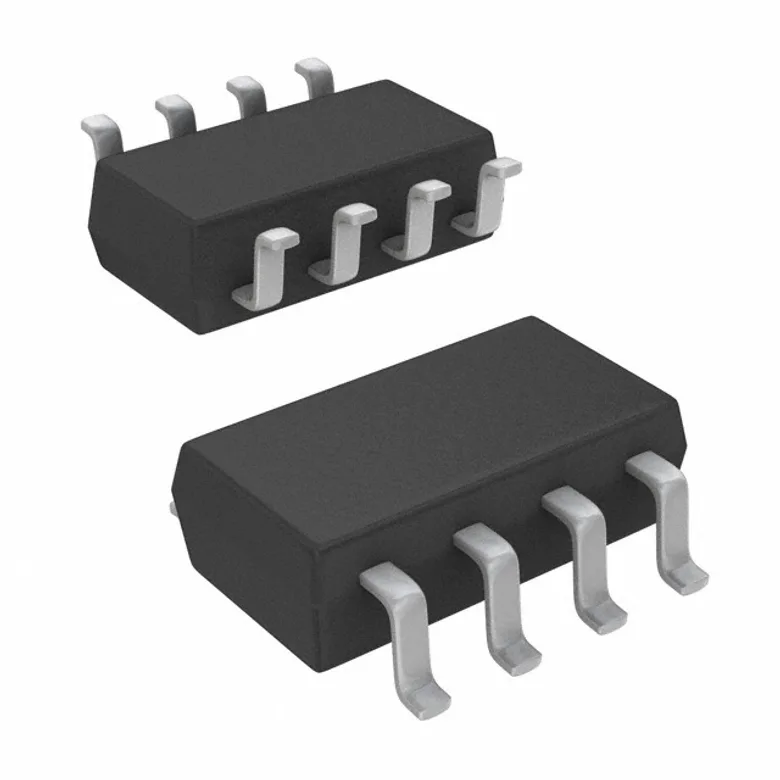

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Vishay Siliconix DG449DS-T1-E3
Manufacturer
Manufacturer Product Number
DG449DS-T1-E3
Description
IC SWITCH SPDT X 1 45OHM SOT23-8
Manufacturer Standard Lead Time Contact us
Detailed Description
IC SWITCH SPDT X 1 45OHM SOT23-8
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Vishay Siliconix
Operating Temperature
-40°C ~ 85°C (TA)
On-State Resistance (Max)
45Ohm
Mounting Type
Surface Mount
-3db Bandwidth
-
Supplier Device Package
SOT-23-8
Package / Case
SOT-23-8
Voltage - Supply, Single (V+)
7V ~ 36V
Voltage - Supply, Dual (V±)
±4.5V ~ 20V
Charge Injection
5pC
Crosstalk
-80dB @ 1MHz
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Channel-to-Channel Matching (ΔRon)
5Ohm (Max)
Switch Time (Ton, Toff) (Max)
146ns, 104ns
Channel Capacitance (CS(off), CD(off))
8pF
Current - Leakage (IS(off)) (Max)
1nA
Number of Circuits
1
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
DG449DS-T1-E3
1850076
DG449DS-T1-E3CT-ND
DG449DS-T1-E3DKR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 652
Packaging Quantity Unit Price Ext Price
1 32.000 ₫ 32.000 ₫
32.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
32.000 ₫
32.000 ₫
10
23.000 ₫
230.000 ₫
25
21.000 ₫
525.000 ₫
100
19.000 ₫
1.900.000 ₫
250
18.000 ₫
4.500.000 ₫
500
17.000 ₫
8.500.000 ₫
1,000
17.000 ₫
17.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
32.000 ₫
32.000 ₫
10
23.000 ₫
230.000 ₫
25
21.000 ₫
525.000 ₫
100
19.000 ₫
1.900.000 ₫
250
18.000 ₫
4.500.000 ₫
500
17.000 ₫
8.500.000 ₫
1,000
17.000 ₫
17.000.000 ₫
MOQ 1 · Order multiple 1
Substitutes
ADG619BRTZ-500RL7
IC SWITCH SPDTX1 6.5OHM SOT23-8
51.000 ₫ Analog Devices Inc.
ADG619BRTZ-REEL7
IC SWITCH SPDTX1 6.5OHM SOT23-8
89.000 ₫ Analog Devices Inc.
