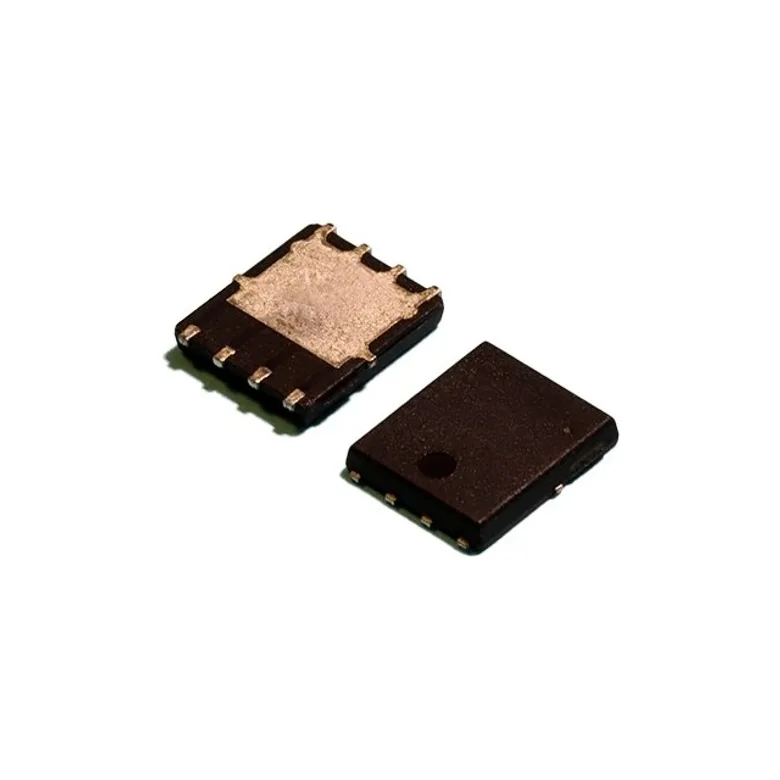

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
YAGEO XSEMI XP3N1R8AMT
Manufacturer
Manufacturer Product Number
XP3N1R8AMT
Description
FET N-CH 30V 40.6A 165A PMPAK
Manufacturer Standard Lead Time Contact us
Detailed Description
FET N-CH 30V 40.6A 165A PMPAK
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
YAGEO XSEMI
Gate Charge (Qg) (Max) @ Vgs
208 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
8960 pF @ 25 V
Operating Temperature
-55°C ~ 150°C (TJ)
Power Dissipation (Max)
5W (Ta), 83.3W (Tc)
Qualification
-
Technology
MOSFET (Metal Oxide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
41.9A (Ta), 100A (Tc)
Rds On (Max) @ Id, Vgs
1.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id
3V @ 250µA
Mounting Type
Surface Mount
FET Feature
-
Supplier Device Package
8-PMPAK (5x6)
Package / Case
8-PowerLDFN
Grade
-
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Vgs (Max)
±20V
Drain to Source Voltage (Vdss)
30 V
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
XP3N1R8AMT
26249121
5048-XP3N1R8AMTTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 8.000 ₫ 8.000 ₫
8.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
3,000
8.000 ₫
24.000.000 ₫
6,000
7.000 ₫
42.000.000 ₫
9,000
7.000 ₫
63.000.000 ₫
15,000
7.000 ₫
105.000.000 ₫
21,000
7.000 ₫
147.000.000 ₫
MOQ 3,000 · Order multiple 3,000
