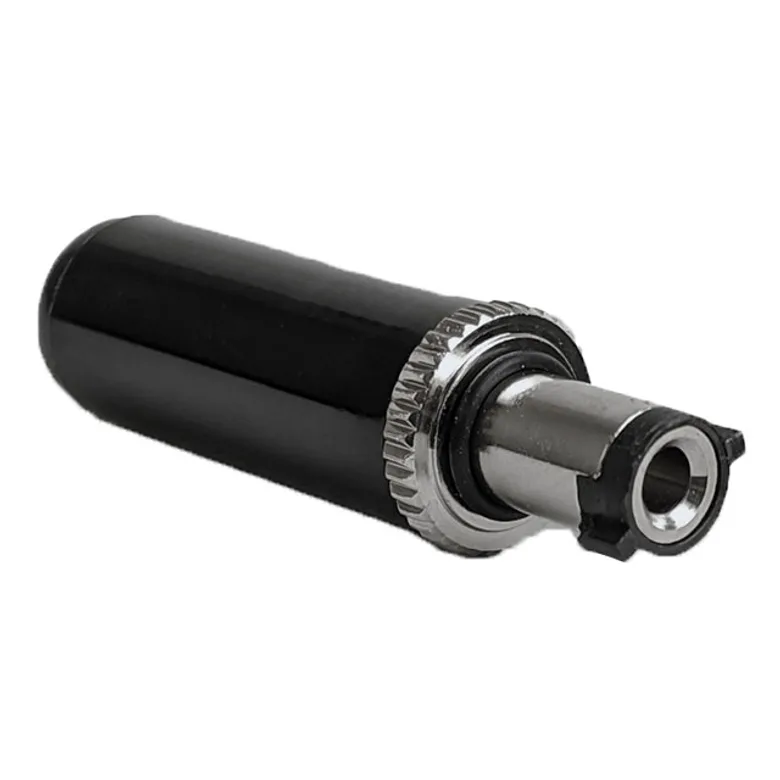

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Switchcraft Inc. 760BKZ
Manufacturer
Manufacturer Product Number
760BKZ
Description
DC POWER JACK, BKZ LOCKING SERIE
Manufacturer Standard Lead Time Contact us
Detailed Description
DC POWER JACK, BKZ LOCKING SERIE
EDA/CAD Models
Product Attributes
Type
Description
メーカー
Switchcraft Inc.
動作温度
-
位置/接点数
2 Conductors, 2 Contacts
コネクタタイプ
Plug
性別
Female
ねじサイズ
-
特長
-
内部スイッチ
Does Not Contain Switch
端子
Solder Eyelet(s)
付属品
3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
実装タイプ
Free Hanging (In-Line)
侵入保護等級
-
シールド
Unshielded
材料難燃性等級
-
ハウジング材質
Thermoplastic
本体材質
Brass
電圧 - 定格
-
本体色
Silver, Black
接点材質 - めっき
Tin
絶縁色
Black
取付特徴
-
接点材料
Brass
実際の直径
0.098" (2.50mm ID), 0.217" (5.50mm OD)
嵌合長さ/深さ
0.374" (9.50mm)
業界標準嵌合直径
2.50mm ID (0.098"), 5.50mm OD (0.217")
定格電流 (Amps)
5 A
Documents & Media
Resource Type
Link
インタラクティブメディア
Additional Resources
Attribute
Description
部品番号エイリアス
760BKZ
9997460
SC3837-ND
在庫状況
在庫あり
更新日
2026/5/16
In-Stock: 479
Packaging Quantity Unit Price Ext Price
1 232.000 ₫ 232.000 ₫
232.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
232.000 ₫
232.000 ₫
10
197.000 ₫
1.970.000 ₫
25
185.000 ₫
4.625.000 ₫
50
176.000 ₫
8.800.000 ₫
100
168.000 ₫
16.800.000 ₫
300
155.000 ₫
46.500.000 ₫
500
150.000 ₫
75.000.000 ₫
1,000
143.000 ₫
143.000.000 ₫
最小注文数量 1 · 注文倍数 1
