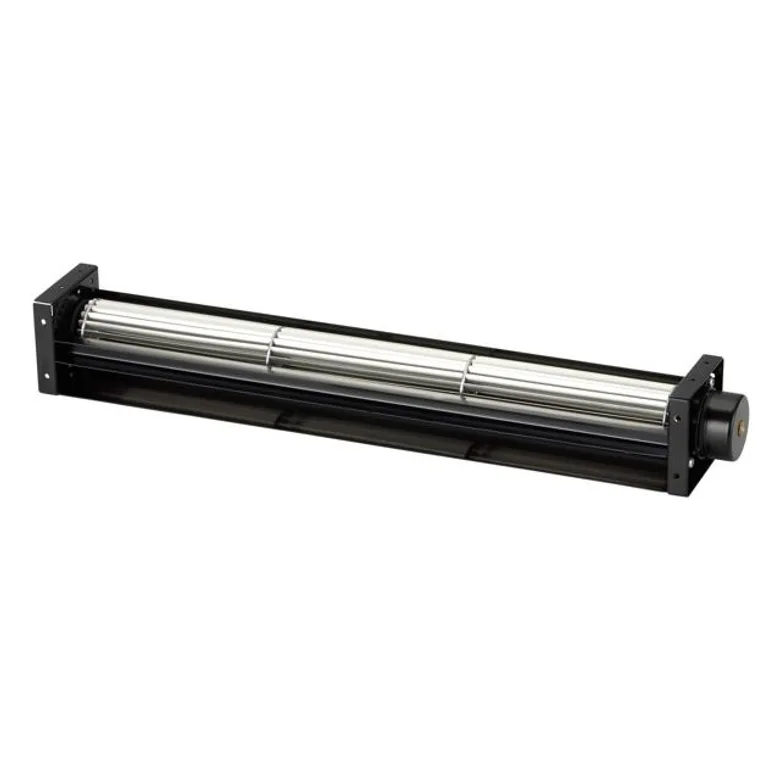

Pelonis Technologies JL3-PE03019A24H-3B
Manufacturer
Manufacturer Product Number
JL3-PE03019A24H-3B
Description
FAN BLOWER CF 247X50MM 24VDC
Manufacturer Standard Lead Time 1일
Detailed Description
Fan Blower, Cross Flow 24VDC Rectangular - 247mm L x 48mm H Ball 56.0 CFM (1.6m³/min) 2 Wire Leads
Product Attributes
Type
Description
제조사
Pelonis Technologies
전력 (Watts)
6 W
작동 온도
14 ~ 158°F (-10 ~ 70°C)
크기/치수
Rectangular - 247mm L x 48mm H
특징
Auto Restart, Locked Rotor Protection, Polarity Protection
베어링 유형
Ball
종단
2 Wire Leads
승인 기관
CE, cUL, UL
팬 유형
Blower, Cross Flow
노이즈
46.0dB(A)
정압
0.190 in H2O (46.1 Pa)
RPM
4500 RPM
전압 - 정격
24VDC
공기 흐름
56.0 CFM (1.6m³/min)
너비
50.00mm
Documents & Media
Resource Type
Link
Additional Resources
Attribute
Description
부품 번호 별칭
JL3-PE03019A24H-3B
16609351
3611-JL3-PE03019A24H-3B-ND
재고 상태
재고 있음
업데이트
2026. 5. 16.
In-Stock: 250
Packaging Quantity Unit Price Ext Price
1 2.899.000 ₫ 2.899.000 ₫
2.899.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
2.899.000 ₫
2.899.000 ₫
10
2.706.000 ₫
27.060.000 ₫
25
2.537.000 ₫
63.425.000 ₫
50
2.319.000 ₫
115.950.000 ₫
100
2.194.000 ₫
219.400.000 ₫
250
2.030.000 ₫
507.500.000 ₫
최소 주문 수량 1 · 주문 배수 1
