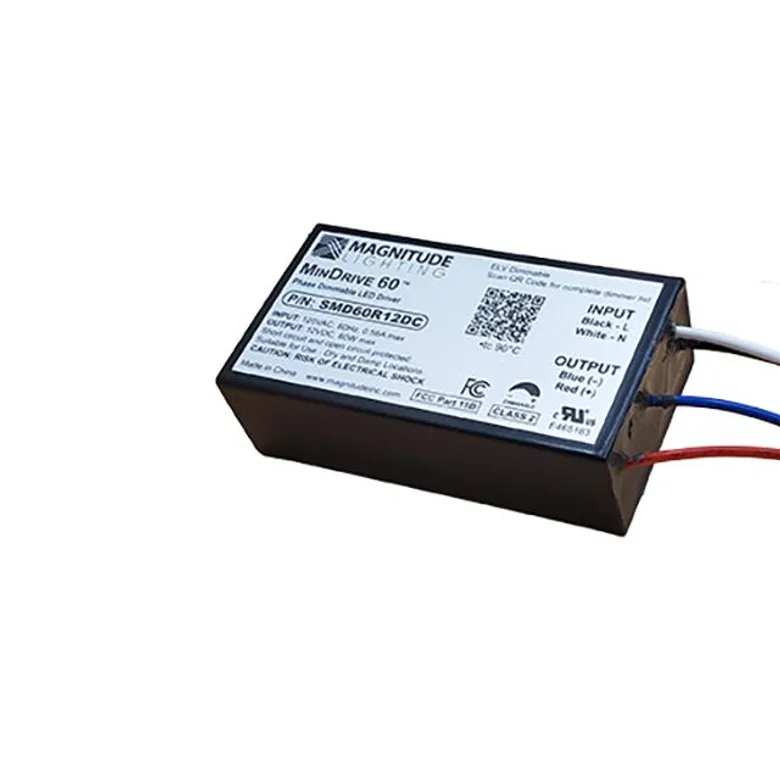

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Magnitude Lighting SMD60R12DC
Manufacturer
Manufacturer Product Number
SMD60R12DC
Description
MinDrive, 60W, 120VAC, 12VDC, EL
Manufacturer Standard Lead Time 3天
Detailed Description
5A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet View datasheet
Product Attributes
Type
Description
制造商
Magnitude Lighting
功率 (Watts)
60 W
输出数量
1
电流 - 输出（最大）
5A
标准编号
-
工作温度
-30°C ~ 40°C
端接样式
Wire Leads
尺寸/规格
2.90" L x 1.60" W x 0.90" H (73.7mm x 40.6mm x 22.9mm)
电压 - 输出
12V
特性
OCP, SCP
电压 - 输入（最大）
130VAC
认证机构
cURus, FCC
安装类型
Chassis Mount
额定值
IP20
效率
90%
调光
-
电压 - 输入（最小值）
100VAC
类型
Constant Voltage
拓扑
AC DC Converter
重量
-
Documents & Media
Resource Type
Link
数据手册
Additional Resources
Attribute
Description
料号别名
SMD60R12DC
18110934
3165-SMD60R12DC-ND
库存状态
有货
更新时间
2026/5/16
In-Stock: 249
Packaging Quantity Unit Price Ext Price
1 2.139.000 ₫ 2.139.000 ₫
2.139.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
2.139.000 ₫
2.139.000 ₫
5
2.042.000 ₫
10.210.000 ₫
10
1.945.000 ₫
19.450.000 ₫
最小起订量 1 · 订购倍数 1
