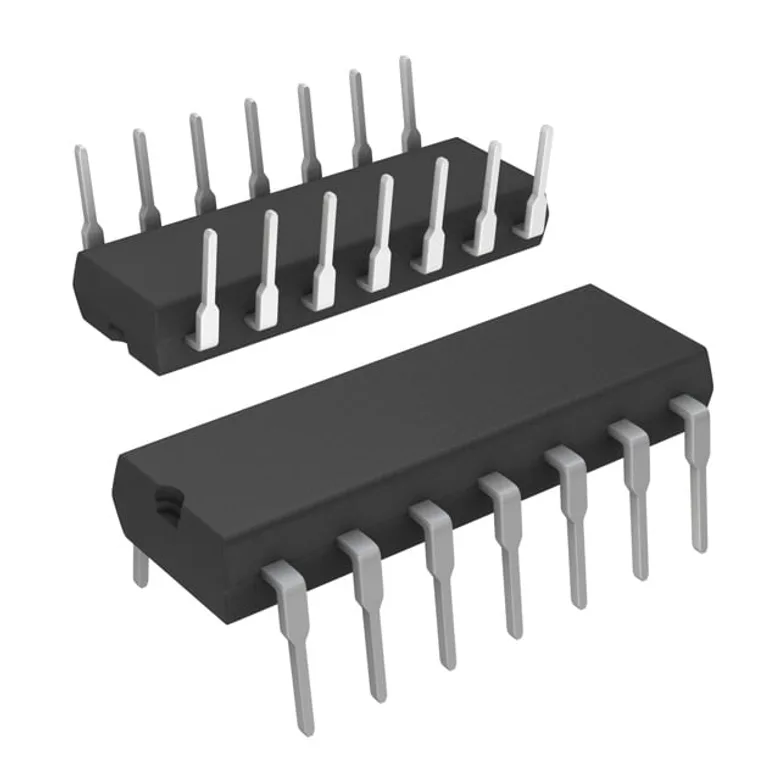

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Analog Devices Inc./Maxim Integrated MAX902CPD+
Manufacturer
Manufacturer Product Number
MAX902CPD+
Description
IC COMPARATOR 2 W/LATCH 14DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC COMPARATOR 2 W/LATCH 14DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Analog Devices Inc./Maxim Integrated
Operating Temperature
0°C ~ 70°C
Output Type
TTL
Voltage - Supply, Single/Dual (±)
5V ~ 10V, ±2.5V ~ 5V
Mounting Type
Through Hole
Supplier Device Package
14-PDIP
Propagation Delay (Max)
-
Current - Quiescent (Max)
8mA, 6mA, 3mA
Voltage - Input Offset (Max)
4mV @ ±5V
Current - Input Bias (Max)
10µA @ ±5V
Current - Output (Typ)
-
CMRR, PSRR (Typ)
82.5dB CMRR, 80dB PSRR
Hysteresis
-
Number of Elements
2
Package / Case
14-DIP (0.300", 7.62mm)
Type
with Latch
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Part Numbering Guides
Additional Resources
Attribute
Description
Part Number Alias
MAX902CPD+
10266603
505-MAX902CPD+-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 415.000 ₫ 415.000 ₫
415.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
50
415.000 ₫
20.750.000 ₫
MOQ 50 · Order multiple 50
Substitutes
MAX902CPD+
IC COMPARATOR 2 W/LATCH 14DIP
415.000 ₫ Analog Devices Inc./Maxim Integrated
