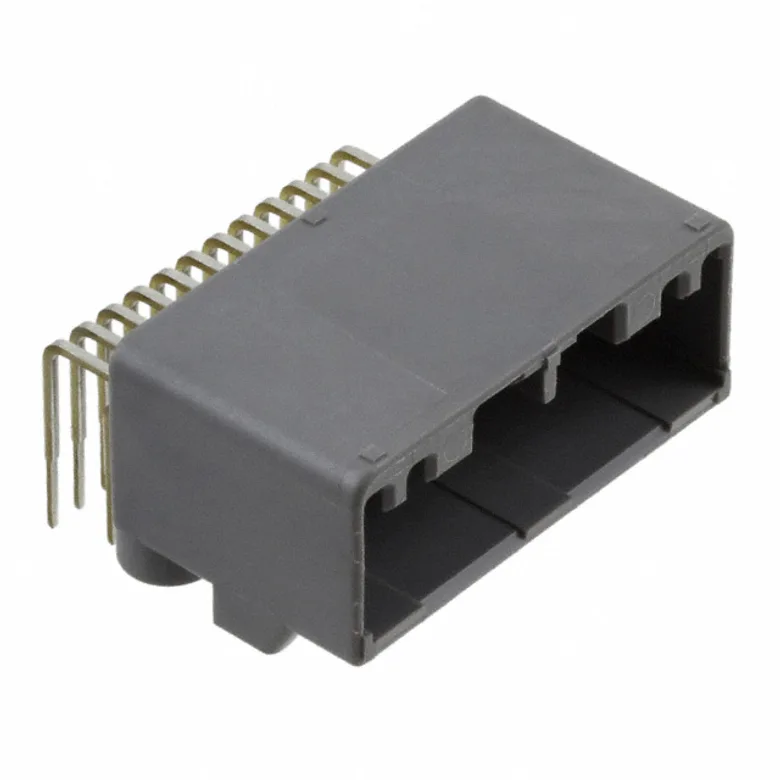

JAE Electronics MX34024NF1
Manufacturer
Manufacturer Product Number
MX34024NF1
Description
CONN HEADER R/A 24POS 2.2MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN HEADER R/A 24POS 2.2MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
JAE Electronics
Operating Temperature
-40°C ~ 85°C
Connector Type
Header
Applications
Automotive
Features
Board Lock
Contact Type
Male Pin
Fastening Type
Locking Ramp
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
-
Current Rating (Amps)
3A
Mounting Type
Through Hole, Right Angle
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
24
Number of Rows
2
Material Flammability Rating
-
Style
Board to Cable/Wire
Insulation Color
Gray
Pitch - Mating
0.087" (2.20mm)
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Contact Material
Brass
Contact Shape
Square
Contact Length - Post
0.126" (3.20mm)
Insulation Height
0.626" (15.90mm)
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Row Spacing - Mating
0.118" (3.00mm)
Contact Length - Mating
0.303" (7.70mm)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Drawings
Training Modules
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
MX34024NF1
2139262
670-2926-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 56.000 ₫ 56.000 ₫
56.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
56.000 ₫
56.000 ₫
16
46.000 ₫
736.000 ₫
112
40.000 ₫
4.480.000 ₫
512
36.000 ₫
18.432.000 ₫
1,008
34.000 ₫
34.272.000 ₫
5,008
31.000 ₫
155.248.000 ₫
MOQ 1 · Order multiple 1
