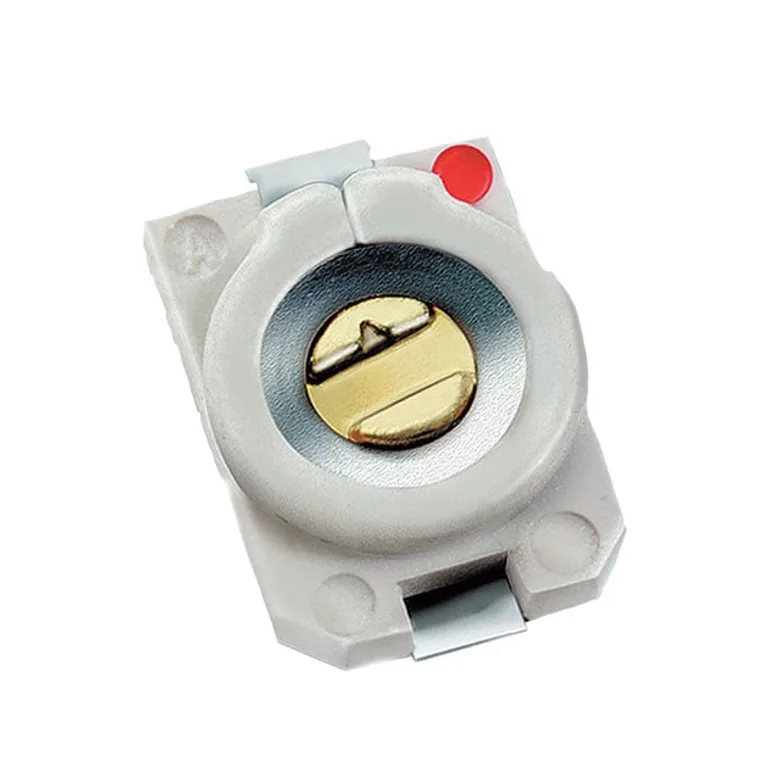

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Knowles Voltronics JZ100HV
Manufacturer
Manufacturer Product Number
JZ100HV
Description
CAP TRIMMER 2-10PF 350V SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
CAP TRIMMER 2-10PF 350V SMD
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Knowles Voltronics
Adjustment Type
Top
Operating Temperature
-40°C ~ 85°C
Capacitance Range
2 ~ 10pF
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
Features
General Purpose
Mounting Type
Surface Mount
Q @ Freq
1500 @ 1MHz
Dielectric Material
Ceramic
Height - Seated (Max)
0.057" (1.45mm)
Voltage - Rated
350 V
Documents & Media
Resource Type
Link
Datasheets
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
JZ100HV
6021627
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
