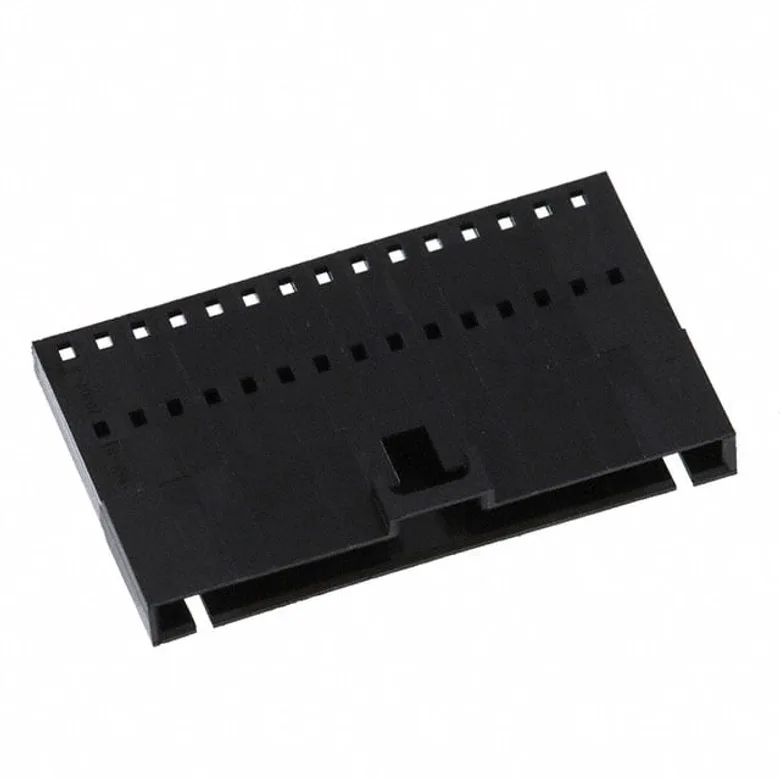

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Molex 0701070014
Manufacturer
Manufacturer Product Number
0701070014
Description
CONN PLUG HSG 15POS 2.54MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN PLUG HSG 15POS 2.54MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Molex
Operating Temperature
-40°C ~ 105°C
Connector Type
Plug
Contact Termination
Crimp
Color
Black
Features
-
Contact Type
Male Pin
Fastening Type
Latch Holder
Row Spacing
-
Mounting Type
Free Hanging (In-Line)
Number of Positions
15
Pitch
0.100" (2.54mm)
Note
Contacts Sold Separately
Insulation Material
Polyester, Glass Filled
Number of Rows
1
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Related Documents
Interactive Media
Videos
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
0701070014
3468678
WM20404-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 16
Packaging Quantity Unit Price Ext Price
1 35.000 ₫ 35.000 ₫
35.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
35.000 ₫
35.000 ₫
10
30.000 ₫
300.000 ₫
25
28.000 ₫
700.000 ₫
50
26.000 ₫
1.300.000 ₫
100
25.000 ₫
2.500.000 ₫
350
23.000 ₫
8.050.000 ₫
700
22.000 ₫
15.400.000 ₫
1,050
21.000 ₫
22.050.000 ₫
2,800
20.000 ₫
56.000.000 ₫
MOQ 1 · Order multiple 1
