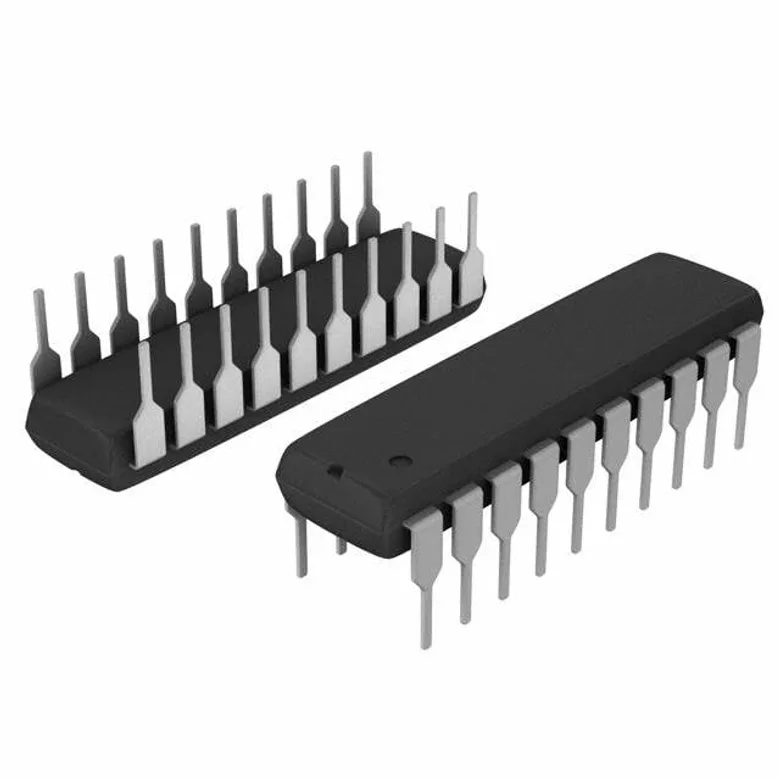

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
onsemi 74ACT520PC
Manufacturer
Manufacturer Product Number
74ACT520PC
Description
IC ID COMPARATOR 8BIT 20-PDIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Magnitude Comparator Bit Active Low Output A=B 20-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
onsemi
Product Status
Obsolete
Number of Bits
8
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
4.5V ~ 5.5V
Current - Quiescent (Iq)
4 µA
Current - Output High, Low
24mA, 24mA
Mounting Type
Through Hole
Output
Active Low
Supplier Device Package
20-PDIP
Max Propagation Delay @ V, Max CL
10ns @ 5V, 50pF
Output Function
A=B
Package / Case
20-DIP (0.300", 7.62mm)
Type
Identity Comparator
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
74ACT520PC
211848
74ACT520PC-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 20.000 ₫ 20.000 ₫
20.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
450
20.000 ₫
9.000.000 ₫
MOQ 450 · Order multiple 450
