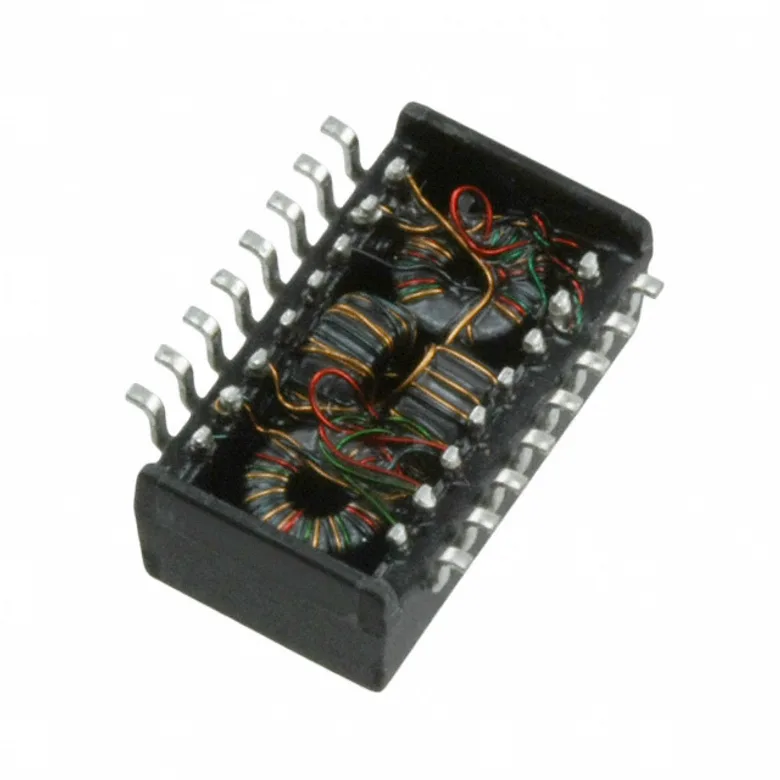

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics E2023NLT
Manufacturer
Manufacturer Product Number
E2023NLT
Description
XFRMR LAN ISOL 10BASET 1:2.5 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
200µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:2.5CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:2.5CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.495" L x 0.280" W (12.57mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.210" (5.33mm)
Inductance
200µH
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
E2023NLT
7104773
553-3771-1-ND
553-3771-2-ND
553-3771-6-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 125.000 ₫ 125.000 ₫
125.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
125.000 ₫
125.000 ₫
10
113.000 ₫
1.130.000 ₫
25
108.000 ₫
2.700.000 ₫
50
105.000 ₫
5.250.000 ₫
100
102.000 ₫
10.200.000 ₫
250
97.000 ₫
24.250.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
850
92.000 ₫
78.200.000 ₫
1,700
89.000 ₫
151.300.000 ₫
2,550
88.000 ₫
224.400.000 ₫
MOQ 850 · Order multiple 850
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
125.000 ₫
125.000 ₫
10
113.000 ₫
1.130.000 ₫
25
108.000 ₫
2.700.000 ₫
50
105.000 ₫
5.250.000 ₫
100
102.000 ₫
10.200.000 ₫
250
97.000 ₫
24.250.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
E2023NL
XFRMR LAN ISOL 10BASET 1:2.5 SMD
125.000 ₫ Pulse Electronics
Substitutes
E2023NL
XFRMR LAN ISOL 10BASET 1:2.5 SMD
125.000 ₫ Pulse Electronics
