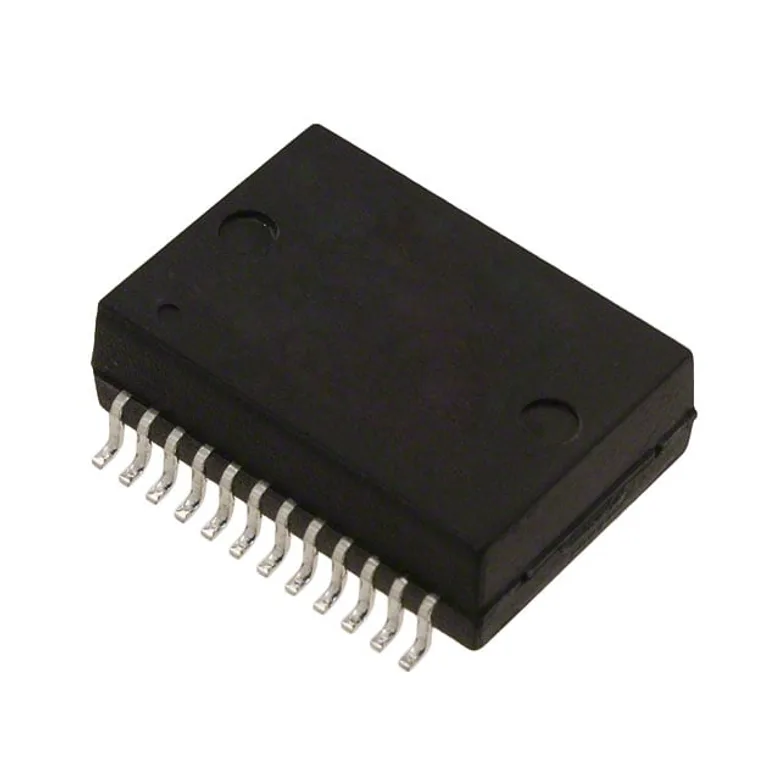

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5004
Manufacturer
Manufacturer Product Number
H5004
Description
MODULE SINGLE GIGABIT LAN 24SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
LAN 1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.690" L x 0.480" W (17.53mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.235" (5.97mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
H5004
754302
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
H5004T
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
191.000Â â‚« Pulse Electronics
Substitutes
H5004NL
MODULE SINGLE GIGABIT LAN 24SOIC
275.000Â â‚« Pulse Electronics
