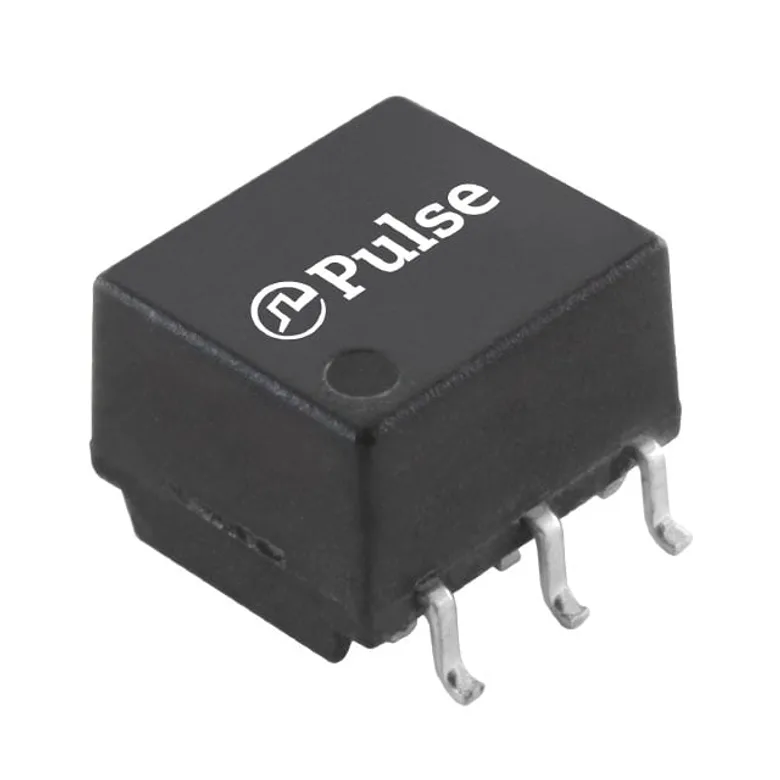

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HMU2103NLT
Manufacturer
Manufacturer Product Number
HMU2103NLT
Description
MDL, SIN, XFMR-CMC, 1:1, 4.3KV,
Manufacturer Standard Lead Time Contact us
Detailed Description
MDL, SIN, XFMR-CMC, 1:1, 4.3KV,
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.300" L x 0.265" W (7.62mm x 6.73mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
150µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HMU2103NLT
9449708
553-HMU2103NLTCT-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 413
Packaging Quantity Unit Price Ext Price
1 117.000 ₫ 117.000 ₫
117.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
117.000 ₫
117.000 ₫
10
106.000 ₫
1.060.000 ₫
25
101.000 ₫
2.525.000 ₫
50
98.000 ₫
4.900.000 ₫
100
95.000 ₫
9.500.000 ₫
250
91.000 ₫
22.750.000 ₫
MOQ 1 · Order multiple 1
