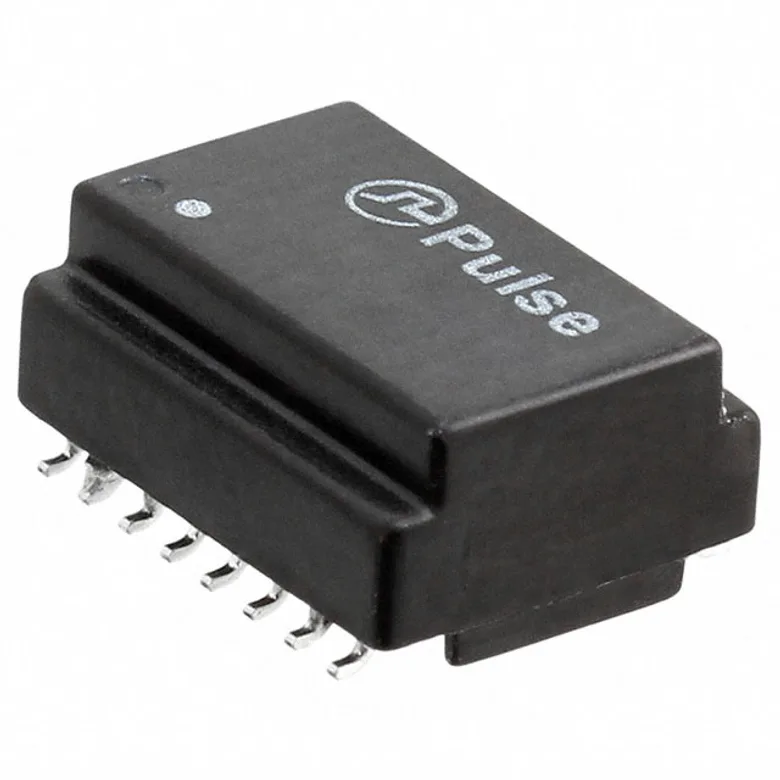

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX2260FNL
Manufacturer
Manufacturer Product Number
HX2260FNL
Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.358" W (12.70mm x 9.09mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.236" (5.99mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX2260FNL
4291872
553-2241-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 747
Packaging Quantity Unit Price Ext Price
1 109.000 ₫ 109.000 ₫
109.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
109.000 ₫
109.000 ₫
10
99.000 ₫
990.000 ₫
40
93.000 ₫
3.720.000 ₫
80
90.000 ₫
7.200.000 ₫
120
88.000 ₫
10.560.000 ₫
280
85.000 ₫
23.800.000 ₫
520
83.000 ₫
43.160.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
HX2260FNLT
PULSE XFMR 1 CT:1CT TX/RX 350UH
78.000 ₫ Pulse Electronics
Substitutes
HX2019FNLT
PULSE XFMR 1 CT:1CT TX/RX 350UH
100.000 ₫ Pulse Electronics
HX1260FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
97.000 ₫ Pulse Electronics
TM1198NL
LAN XFMR 10/100 BASE-T SINGLE
63.000 ₫ Taoglas Limited
HX2260FNLT
PULSE XFMR 1 CT:1CT TX/RX 350UH
78.000 ₫ Pulse Electronics
HX1260FNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
116.000 ₫ Pulse Electronics
HX2019FNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
184.000 ₫ Pulse Electronics
HX1198FNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
120.000 ₫ Pulse Electronics
HX1198FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
69.000 ₫ Pulse Electronics
