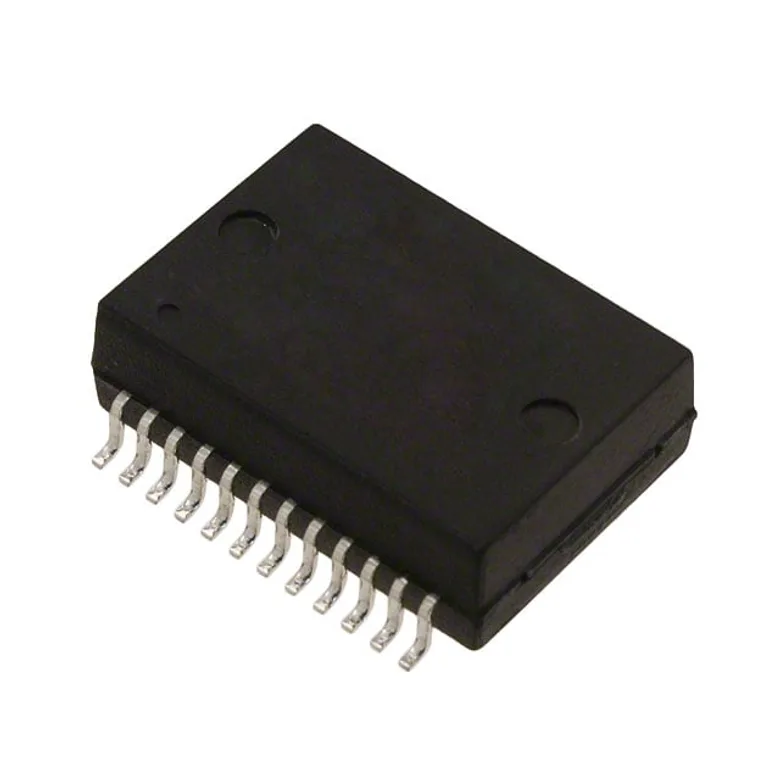

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX5004NL
Manufacturer
Manufacturer Product Number
HX5004NL
Description
MODULE SINGLE GIGABIT LAN 24SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE SINGLE GIGABIT LAN 24SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.690" L x 0.480" W (17.53mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.227" (5.76mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX5004NL
1036959
553-1343-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 448
Packaging Quantity Unit Price Ext Price
1 304.000 ₫ 304.000 ₫
304.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
304.000 ₫
304.000 ₫
10
274.000 ₫
2.740.000 ₫
25
263.000 ₫
6.575.000 ₫
50
255.000 ₫
12.750.000 ₫
100
247.000 ₫
24.700.000 ₫
250
237.000 ₫
59.250.000 ₫
500
229.000 ₫
114.500.000 ₫
1,000
222.000 ₫
222.000.000 ₫
MOQ 1 · Order multiple 1
