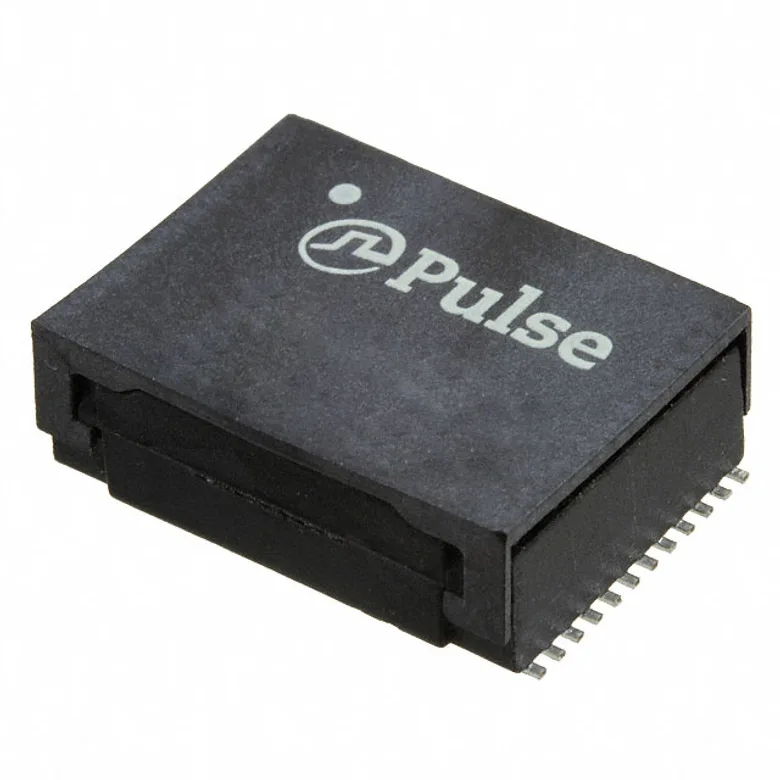

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX5008FNL
Manufacturer
Manufacturer Product Number
HX5008FNL
Description
PULSE XFMR 1CT:1 TX 1CT:1 RX
Manufacturer Standard Lead Time 2 Days
Detailed Description
PULSE XFMR 1CT:1 TX 1CT:1 RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1 Transmitter, 1CT:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.518" L x 0.703" W (13.16mm x 17.86mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.241" (6.12mm)
Inductance
325µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX5008FNL
18808711
2266-HX5008FNL-ND
553-2243-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 39
Packaging Quantity Unit Price Ext Price
1 350.000 ₫ 350.000 ₫
350.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
10
350.000 ₫
3.500.000 ₫
MOQ 10 · Order multiple 10
Tube · Digikey
Quantity Unit Price Ext Price
1
328.000 ₫
328.000 ₫
10
295.000 ₫
2.950.000 ₫
35
279.000 ₫
9.765.000 ₫
70
270.000 ₫
18.900.000 ₫
105
265.000 ₫
27.825.000 ₫
280
254.000 ₫
71.120.000 ₫
525
246.000 ₫
129.150.000 ₫
1,015
239.000 ₫
242.585.000 ₫
MOQ 1 · Order multiple 1
