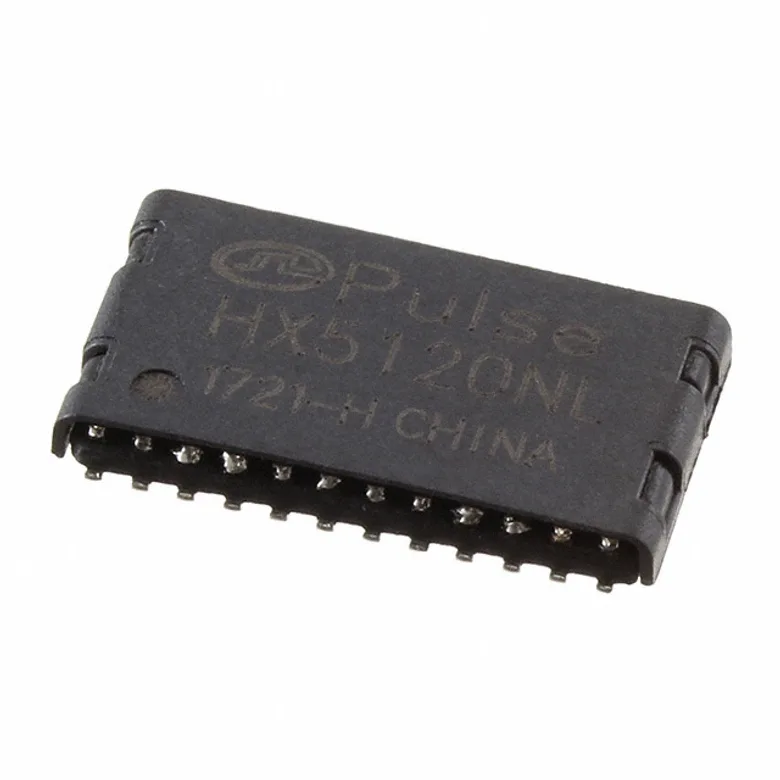

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX5120NLT
Manufacturer
Manufacturer Product Number
HX5120NLT
Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Manufacturer Standard Lead Time Contact us
Detailed Description
350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.650" L x 0.360" W (16.51mm x 9.14mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.082" (2.08mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX5120NLT
8120594
553-HX5120NLTDKR-ND
553-HX5120NLTTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 11,000
Packaging Quantity Unit Price Ext Price
1 420.000 ₫ 420.000 ₫
420.000 ₫
All prices are shown in the selected currency
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
420.000 ₫
420.000 ₫
10
378.000 ₫
3.780.000 ₫
25
363.000 ₫
9.075.000 ₫
50
352.000 ₫
17.600.000 ₫
100
340.000 ₫
34.000.000 ₫
250
326.000 ₫
81.500.000 ₫
500
316.000 ₫
158.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
306.000 ₫
306.000.000 ₫
MOQ 1,000 · Order multiple 1,000
