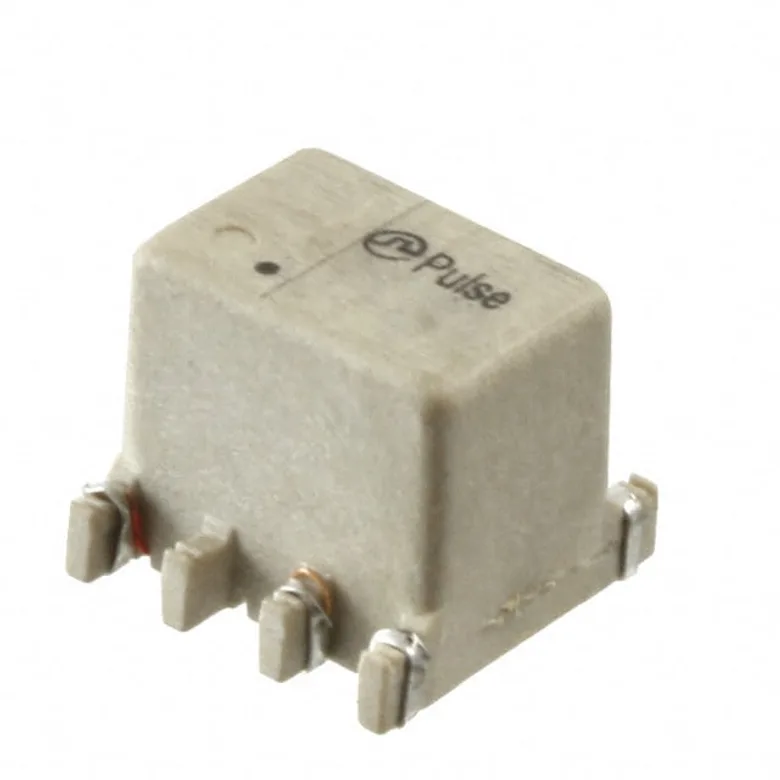

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics PA2002NL
Manufacturer
Manufacturer Product Number
PA2002NL
Description
PULSE XFMR 1:1:1 1.8MH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1:1:1 1.8MH
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 130°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:1:1
ET (Volt-Time)
60VµS
Size / Dimension
0.355" L x 0.340" W (9.02mm x 8.64mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.300" (7.62mm)
Inductance
1.8mH
Documents & Media
Resource Type
Link
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
PA2002NL
5436692
553-2922-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 58.000 ₫ 58.000 ₫
58.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
58.000 ₫
58.000 ₫
10
53.000 ₫
530.000 ₫
25
50.000 ₫
1.250.000 ₫
50
49.000 ₫
2.450.000 ₫
100
47.000 ₫
4.700.000 ₫
250
46.000 ₫
11.500.000 ₫
500
44.000 ₫
22.000.000 ₫
1,000
43.000 ₫
43.000.000 ₫
5,000
40.000 ₫
200.000.000 ₫
MOQ 1 · Order multiple 1
