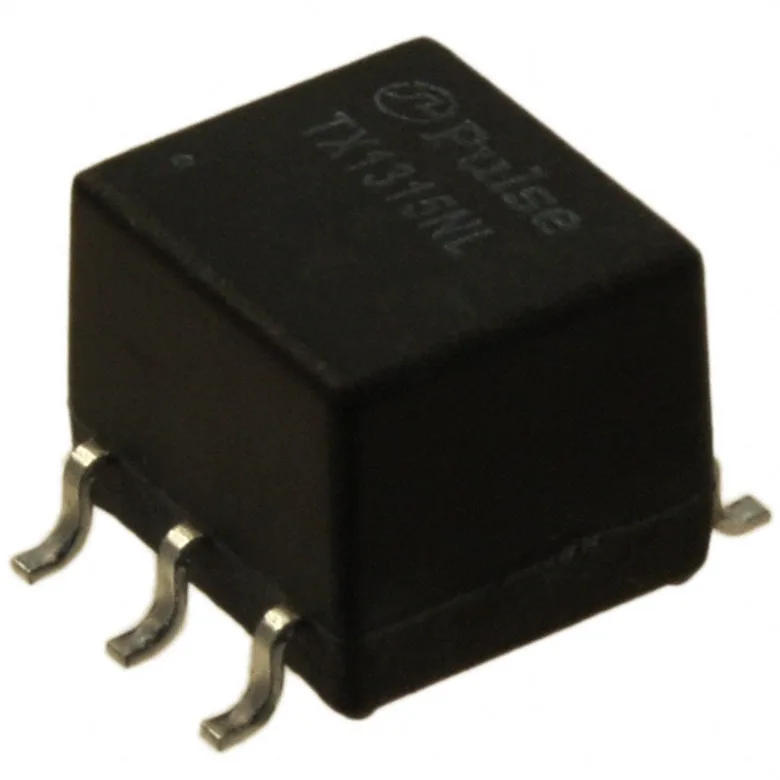

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics TX1315NL
Manufacturer
Manufacturer Product Number
TX1315NL
Description
TRANSFORMER 1CT:1CT 1.2MH SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
TRANSFORMER 1CT:1CT 1.2MH SMD
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
T1/E1 (Single)
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.300" L x 0.276" W (7.62mm x 7.00mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.250" (6.35mm)
Inductance
1.2mH
Weight
0.02 oz (0.57 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
TX1315NL
2265801
553-1669-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,015
Packaging Quantity Unit Price Ext Price
1 124.000 ₫ 124.000 ₫
124.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
124.000 ₫
124.000 ₫
10
112.000 ₫
1.120.000 ₫
25
107.000 ₫
2.675.000 ₫
70
103.000 ₫
7.210.000 ₫
140
99.000 ₫
13.860.000 ₫
280
96.000 ₫
26.880.000 ₫
560
93.000 ₫
52.080.000 ₫
1,050
91.000 ₫
95.550.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
TX1315NLT
TRANSFORMER 1CT:1CT 1.2MH SMD
79.000 ₫ Pulse Electronics
Substitutes
TX1315NLT
TRANSFORMER 1CT:1CT 1.2MH SMD
79.000 ₫ Pulse Electronics
