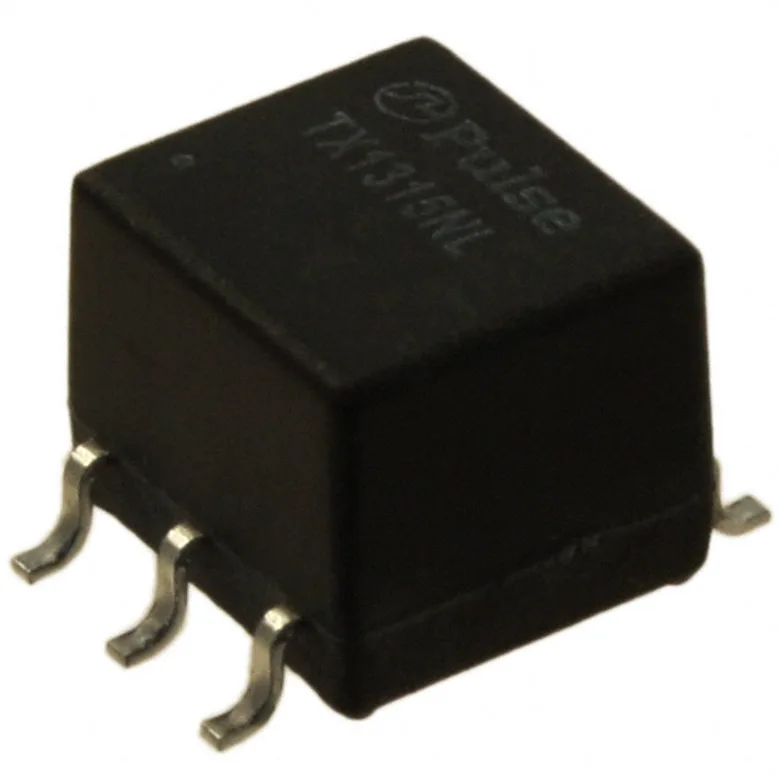

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics TX1315NLT
Manufacturer
Manufacturer Product Number
TX1315NLT
Description
TRANSFORMER 1CT:1CT 1.2MH SMD
Manufacturer Standard Lead Time 2 Days
Detailed Description
TRANSFORMER 1CT:1CT 1.2MH SMD
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
T1/E1 (Single)
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.300" L x 0.276" W (7.62mm x 7.00mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.250" (6.35mm)
Inductance
1.2mH
Weight
0.02 oz (0.57 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
TX1315NLT
18832725
2266-TX1315NLTTR-ND
553-3872-2-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,950
Packaging Quantity Unit Price Ext Price
1 79.000 ₫ 79.000 ₫
79.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
500
79.000 ₫
39.500.000 ₫
1,000
78.000 ₫
78.000.000 ₫
MOQ 500 · Order multiple 500
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
81.000 ₫
81.000.000 ₫
MOQ 1,000 · Order multiple 1,000
Substitutes
TX1315NLT
TRANSFORMER 1CT:1CT 1.2MH SMD
79.000 ₫ Pulse Electronics
