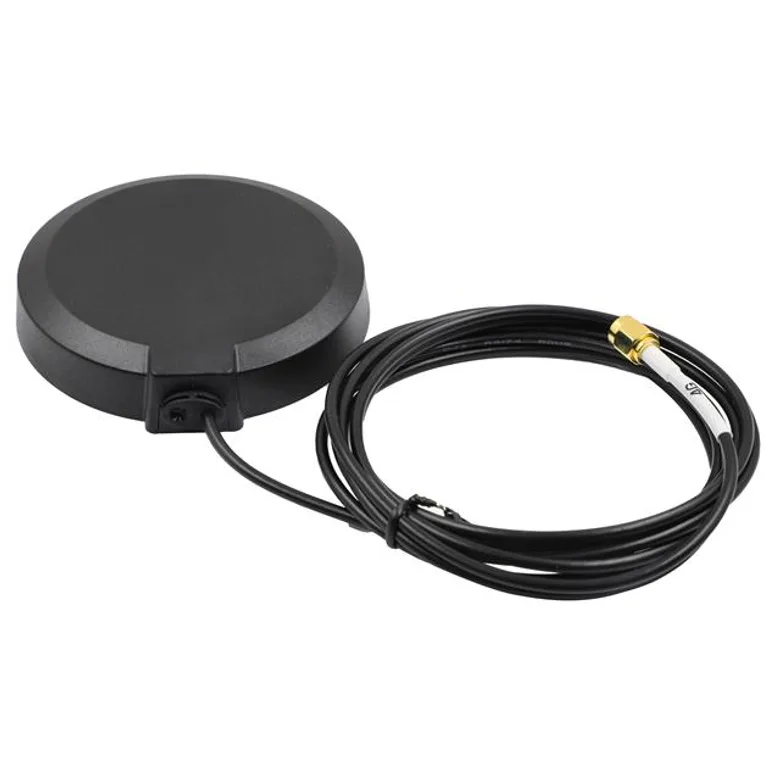

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Quectel YB0010AA
Manufacturer
Manufacturer Product Number
YB0010AA
Description
LTE MAG MNT ANTENNA 2M SMA M
Manufacturer Standard Lead Time Contact us
Detailed Description
LTE MAG MNT ANTENNA 2M SMA M
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Quectel
Return Loss
-
Frequency Range
698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
Applications
LTE
Gain
3.3dBi, 1.44dBi, 3.3dBi, 0.35dBi
Features
-
Termination
SMA Male
Mounting Type
Magnetic
Ingress Protection
IP66
Number of Bands
9
VSWR
3.3
Antenna Type
Module
Height (Max)
0.610" (15.50mm)
Frequency Group
Wide Band
Frequency (Center/Band)
829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz
RF Family/Standard
Cellular
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
YB0010AA
17101898
2958-YB0010AA-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 106
Packaging Quantity Unit Price Ext Price
1 310.000Â â‚« 310.000Â â‚«
310.000Â â‚«
All prices are shown in the selected currency
Bag · Digikey
Quantity Unit Price Ext Price
1
310.000Â â‚«
310.000Â â‚«
10
243.000Â â‚«
2.430.000Â â‚«
25
226.000Â â‚«
5.650.000Â â‚«
100
208.000Â â‚«
20.800.000Â â‚«
250
199.000Â â‚«
49.750.000Â â‚«
500
194.000Â â‚«
97.000.000Â â‚«
1,000
190.000Â â‚«
190.000.000Â â‚«
MOQ 1 · Order multiple 1
