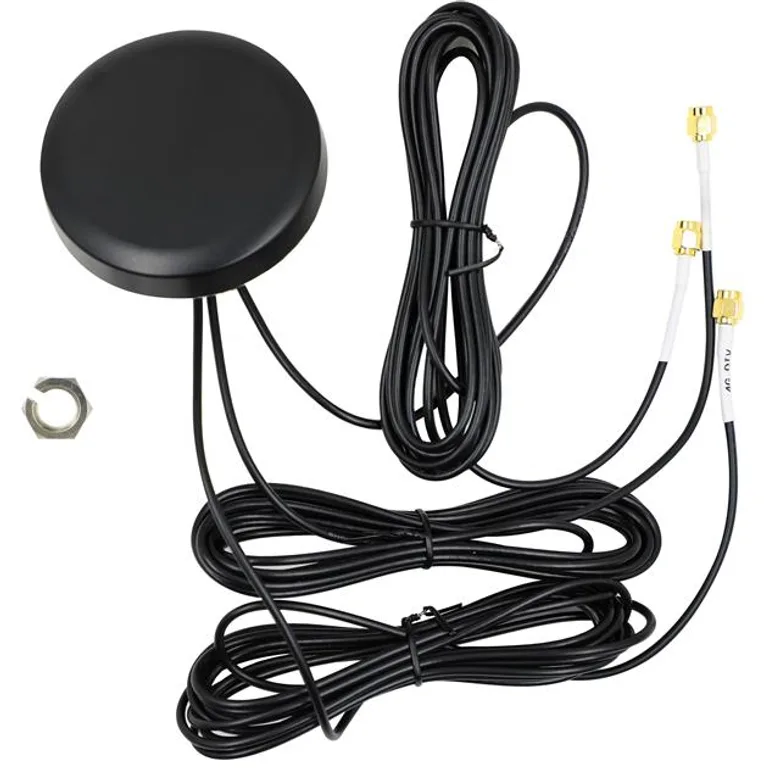

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Quectel YB0014AA
Manufacturer
Manufacturer Product Number
YB0014AA
Description
2IN1 LTE&GNSS SCRW MNT COMBO ANT
Manufacturer Standard Lead Time Contact us
Detailed Description
RF ANTENNA GNSS, LTE, Wi-Fi Module SMA Male Screw Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Quectel
Return Loss
-
Frequency Range
698MHz ~ 1GHz, 1.558GHz ~ 1.564GHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz
Applications
GNSS, LTE, Wi-Fi
Gain
2dBi, 2dBi
Features
Cable - 3m, LNA
Termination
SMA Male
Mounting Type
Screw Mount
Ingress Protection
IP67
Number of Bands
4
VSWR
3, 4
Antenna Type
Module
Height (Max)
0.571" (14.50mm)
Frequency Group
Wide Band
Frequency (Center/Band)
849MHz, 1.561GHz, 1.575GHz, 2.2GHz
RF Family/Standard
Cellular, Navigation
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Drawings
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
YB0014AA
17101907
2958-YB0014AA-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 629.000Â â‚« 629.000Â â‚«
629.000Â â‚«
All prices are shown in the selected currency
Bag · Digikey
Quantity Unit Price Ext Price
1
629.000Â â‚«
629.000Â â‚«
10
504.000Â â‚«
5.040.000Â â‚«
25
473.000Â â‚«
11.825.000Â â‚«
100
439.000Â â‚«
43.900.000Â â‚«
250
423.000Â â‚«
105.750.000Â â‚«
500
413.000Â â‚«
206.500.000Â â‚«
MOQ 1 · Order multiple 1
