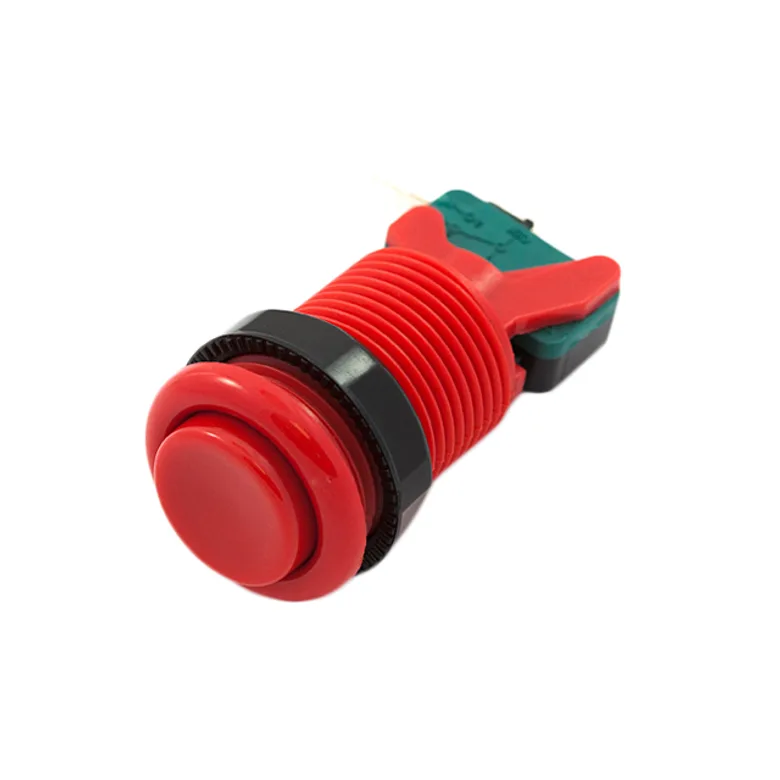

SWITCH PUSHBUTTON SPDT 3A 120V
Manufacturer Standard Lead Time Contact us
Detailed Description
SWITCH PUSHBUTTON SPDT 3A 120V
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
SparkFun Electronics
Switch Function
On-Mom
Operating Temperature
-
Termination Style
Quick Connect - 0.187" (4.7mm)
Features
Arcade Style
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Actuator Type
Round, Button
Current Rating (Amps)
3A (AC)
Mounting Type
Panel Mount, Front
Ingress Protection
-
Panel Cutout Dimensions
Circular - 28.00mm Dia
Circuit
SPDT
Color - Actuator/Cap
Red
Mechanical Life
10,000,000 Cycles
Electrical Life
-
Actuator Marking
No Marking
Type
Standard
Voltage Rating - AC
120 V
